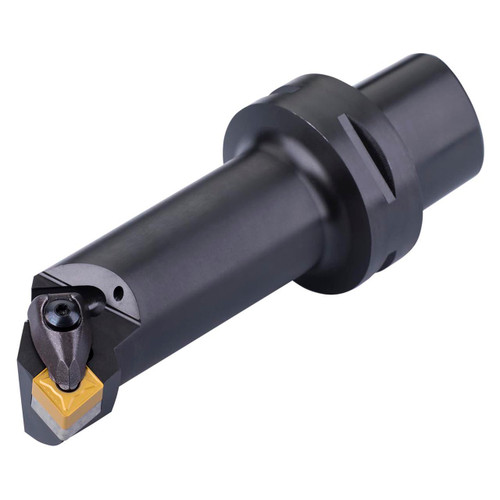

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 15.575 mm, 6.35 mm thick (ISO designation CN.. 1606.. ), right hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 27 mm funtional width and 55 mm protruding length for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 7809770 |
| Functional Width (mm) | 27 mm |
| Functional Width (Inch) | 1.063" |
| Coolant Supply Property | 1 |
| Tool Cutting Edge Angle | 95 |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Minimum Bore Diameter (mm) | |
| Minimum Bore Diameter (Inch) | 4.921" |
| Functional Length (mm) | 55 mm |
| Functional Length (Inch) | 2.165" |
| Clamping Type Code | System D |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
interval quantity:
1
