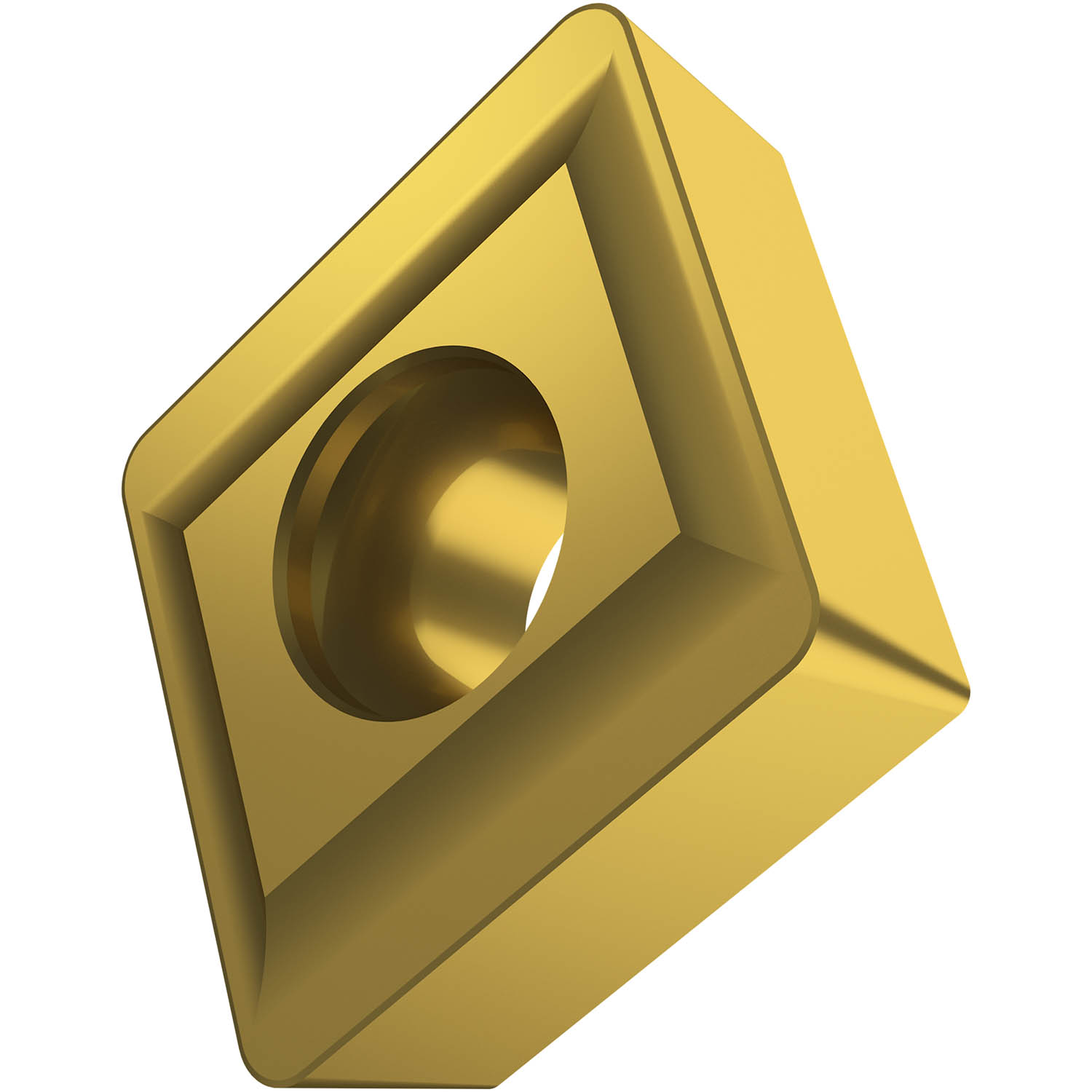

Single-sided milling insert CCMX 09T3, 80° rhomboid for a T-slot milling cutter of 40 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and TS1 geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with T-slot mill F-SCC.
Product Specifications
| EDP Number | 7447873 |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3.5 mm |
| Fixing Hole Diameter (Inch) | 0.138" |
| Cutting Edge Length (mm) | 9.7 mm |
| Cutting Edge Length (Inch) | 0.382" |
| Inscribed Circle Diameter (mm) | 9.525 mm |
| Inscribed Circle Diameter (Inch) | 0.375" |
| Insert Thickness (mm) | 3.97 mm |
| Insert Thickness (Inch) | 0.156" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
