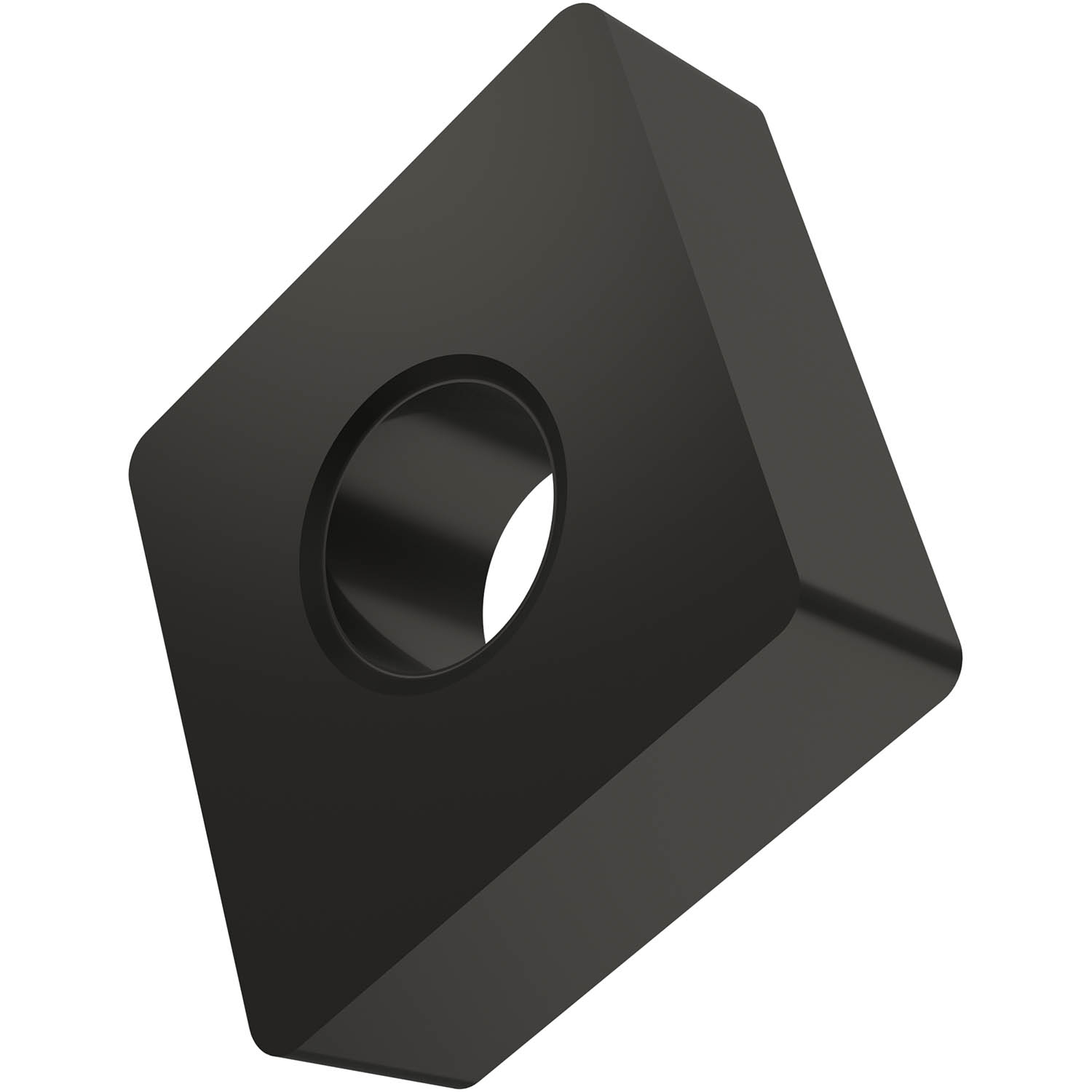

Pramet CNMA 432:T5315 | 0.5" Circle Diameter x 4.76 mm Thickness T5315 Grade Turning Insert

$9.52
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
33/64"
Length (Decimal Inch):
0.5080"
Length (mm):
12.9mm
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.7mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.8mm
interval quantity:
10
SKU:
23147586
Weight:
0.37 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 12.7 mm, 4.76 mm thick, 0.8 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine to heavy machining of cast-irons.

Product Specifications
EDP Number6755801
Max Depth of Cut (mm)8.4 mm
Max Depth of cut (Inch)0.331"
Coating Property1
Fixing Hole Diameter (mm)5.16 mm
Fixing Hole Diameter (Inch)0.203"
Cutting Edge Length (mm)12.9 mm
Cutting Edge Length (Inch)0.508"
Inscribed Circle Diameter (mm)12.7 mm
Inscribed Circle Diameter (Inch)0.5"
Insert Thickness (mm)4.76 mm
Insert Thickness (Inch)0.187"
Corner Radius (mm)0.8 mm
Corner Radius (Inch)0.031"
Coating ProcessMT-CVD
CoatingT5315
Surface ColorBlack
Min Depth of Cut (mm)0.8 mm
Min Depth of Cut (Inch)0.031"
Chipbreaker Manufacturer's DesignationNo chipbreaker
