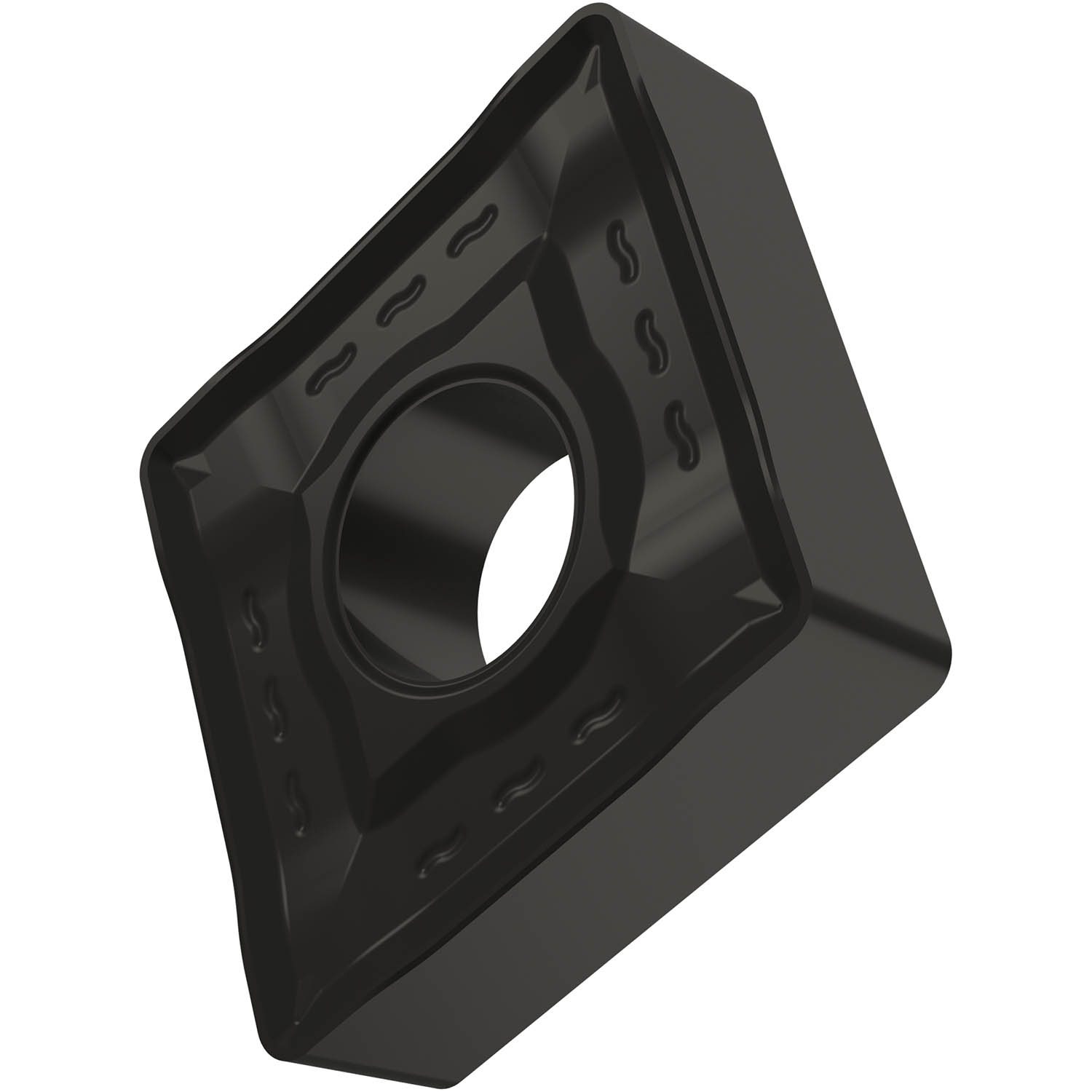

Pramet CNMM 646-NR2:T9325 | 0.75" Circle Diameter x 0.25" Thickness Turning Insert

$20.57
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
49/64"
Length (Decimal Inch):
0.7600"
Length (mm):
19.3mm
Inscribed Circle (Inch):
3/4"
Inscribed Circle (Decimal Inch):
0.7500"
Inscribed Circle (mm):
19.05mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
3/32"
Corner Radius (Decimal Inch):
0.0940"
Corner Radius (mm):
2.4mm
interval quantity:
10
SKU:
23148050
Weight:
0.96 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Single-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 19.05 mm, 6.35 mm thick, 2.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NR2 with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for medium to extra heavy machining of steels and stainless-steels.

Product Specifications
EDP Number6753931
Max Depth of Cut (mm)12 mm
Max Depth of cut (Inch)0.472"
Coating Property1
Fixing Hole Diameter (mm)7.94 mm
Fixing Hole Diameter (Inch)0.313"
Cutting Edge Length (mm)19.3 mm
Cutting Edge Length (Inch)0.76"
Inscribed Circle Diameter (mm)19.05 mm
Inscribed Circle Diameter (Inch)0.75"
Insert Thickness (mm)6.35 mm
Insert Thickness (Inch)0.25"
Corner Radius (mm)2.4 mm
Corner Radius (Inch)0.094"
Coating ProcessMT-CVD
CoatingT9325
Surface ColorBlack
Min Depth of Cut (mm)2.5 mm
Min Depth of Cut (Inch)0.098"
Chipbreaker Manufacturer's DesignationNR2
