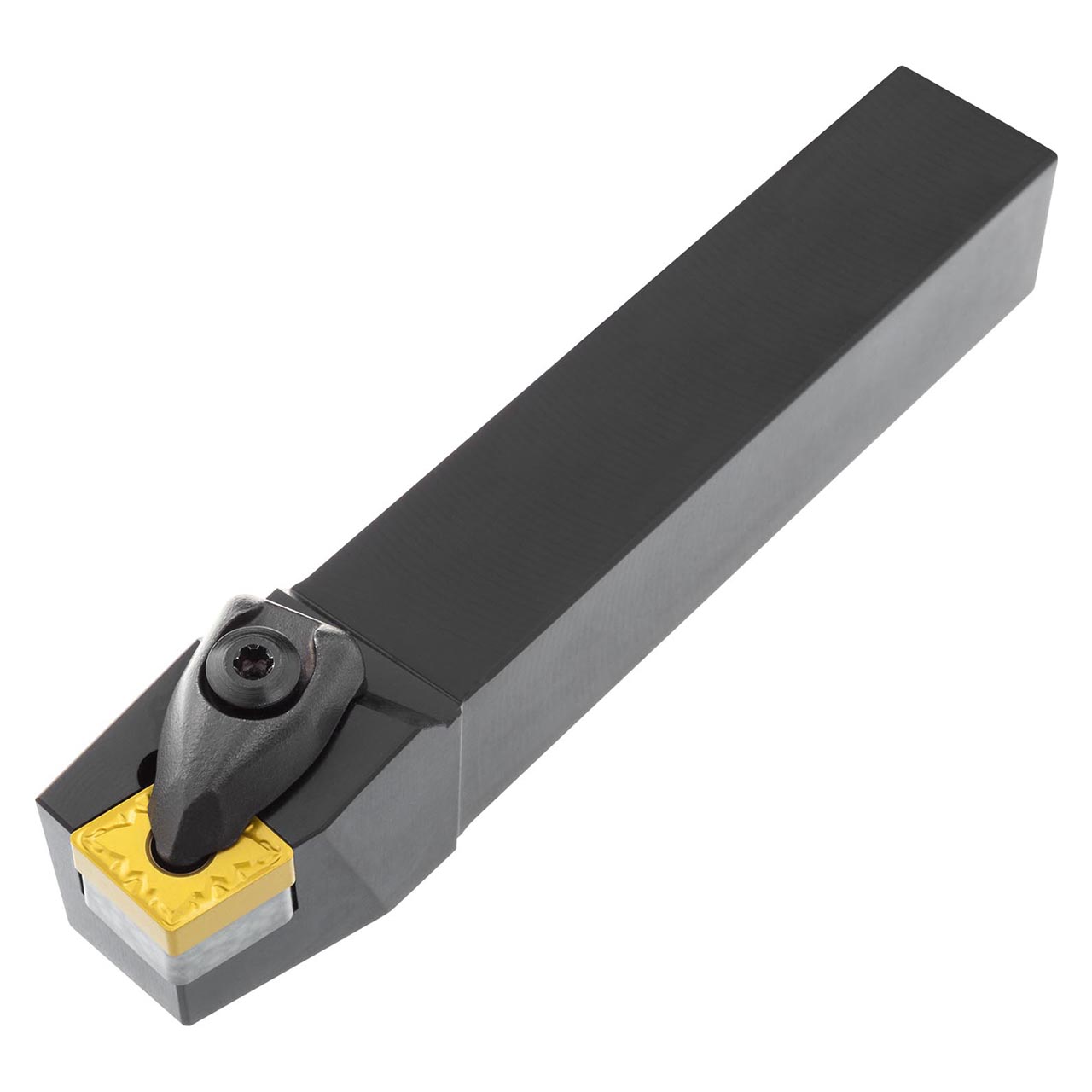

Double clamp turning tool for holding a 80 Degree rhombus negative insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation CN.. 1204.. ), right hand 75 Degree side cutting with straight shank, 20 mm tool height x 20 mm width x 125 mm long for chamfering, taper turning and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 7028404 |
| Functional Height (mm) | 20 mm |
| Functional Width (mm) | |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 20 mm |
| Shank Width (mm) | 20 mm |
| Functional Length (mm) | 125 mm |
| Head Length (mm) | 34.2 mm |
| Clamping Type Code | System D |
| Hand (Cutting Direction) | Right |
| Direction of Tool | Right |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Width (Inch):
25/32"
Shank Height (Inch):
25/32"
interval quantity:
1
