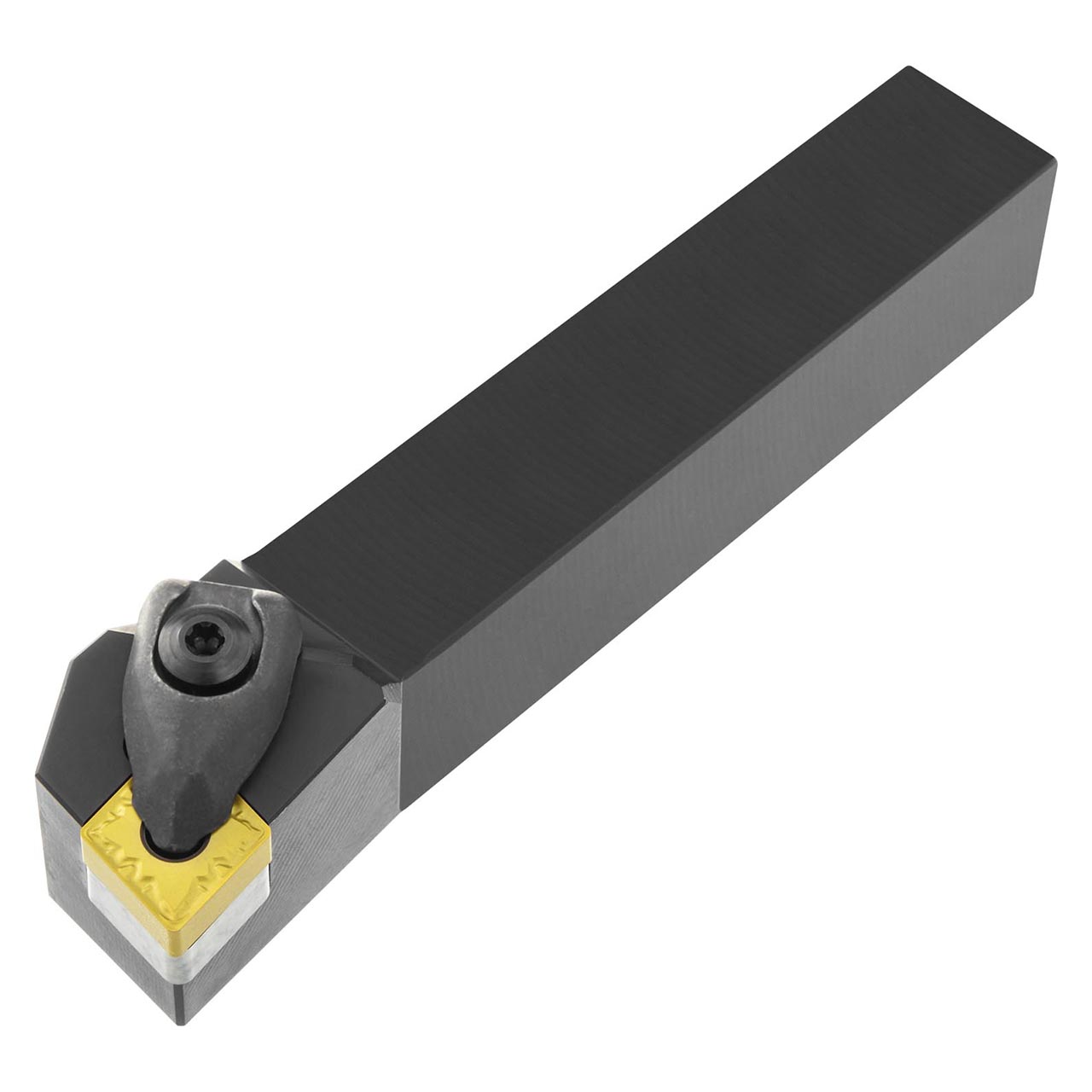

Double clamp turning tool for holding a 80 Degree rhombus negative insert with an inscribed circle diameter of 3/4'', 1/4'' thick (ANSI designation CN.. 64. ), right hand 95 Degree side and end cutting with off-set shank, 1.1/4'' tool height x 1.1/4'' width x 6'' long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 6788561 |
| Functional Width (Inch) | 1.5" |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (Inch) | 1.25" |
| Shank Width (Inch) | 0.75" |
| Functional Length (mm) | 6 mm |
| Head Length (Inch) | 1.7" |
| Clamping Type Code | System D |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Width (Inch):
1-1/4"
Shank Width (Decimal Inch):
1.2500"
Shank Width (mm):
31.75mm
Shank Height (Inch):
1-1/4"
Shank Height (Decimal Inch):
1.2500"
Shank Height (mm):
31.75mm
