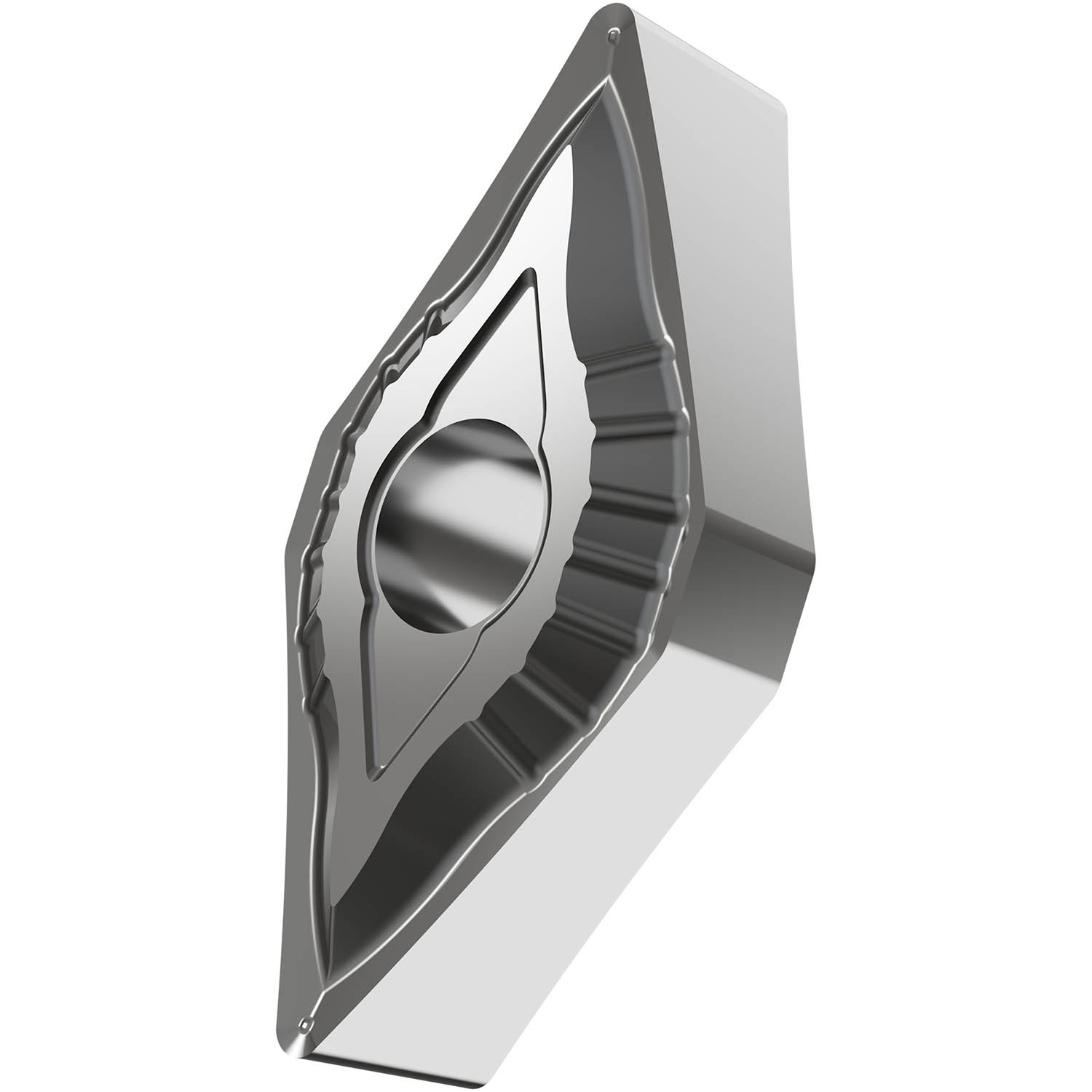

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 12.7 mm, 6.35 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SF with rounded cutting edges, in grade H07, an uncoated WC-Co carbide within ISO range S01-S20, for fine to medium machining of super-alloys.
Product Specifications
| EDP Number | 6921014 |
| Max Depth of Cut (mm) | 2.5 mm |
| Max Depth of cut (Inch) | 0.098" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 5.16 mm |
| Fixing Hole Diameter (Inch) | 0.203" |
| Cutting Edge Length (mm) | 15.5 mm |
| Cutting Edge Length (Inch) | 0.61" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Corner Radius (mm) | 0.4 mm |
| Corner Radius (Inch) | 0.016" |
| Coating | H07 |
| Surface Color | Silver |
| Min Depth of Cut (mm) | 0.4 mm |
| Min Depth of Cut (Inch) | 0.016" |
| Chipbreaker Manufacturer's Designation | SF |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
39/64"
Length (Decimal Inch):
0.6100"
Length (mm):
15.5mm
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.7mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.4mm
