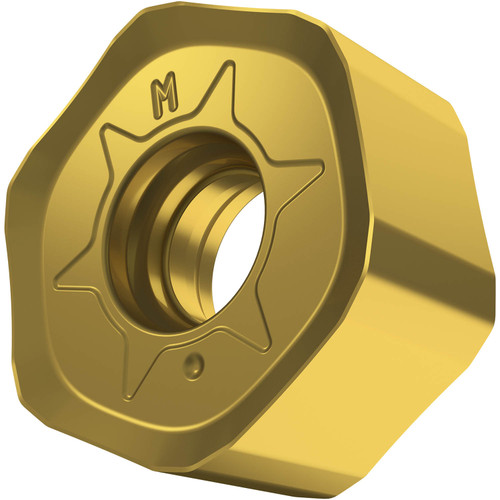

Double-sided milling insert HNGX 0604, hectagonal for a maximum depth of cut of 3.0 mm, with an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide for machining with face mills SHN06C.
Product Specifications
| EDP Number | 7601337 |
| Maximum Depth of Cut (mm) | 3 mm |
| Max Depth of Cut (Inch) | 0.118" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3.7 mm |
| Fixing Hole Diameter (Inch) | 0.146" |
| Inscribed Circle Diameter (mm) | 10.5 mm |
| Inscribed Circle Diameter (Inch) | 0.413" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Coating Process | PVD |
| Coating | M6330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.6 mm |
| Min Depth of Cut (Inch) | 0.024" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
10
