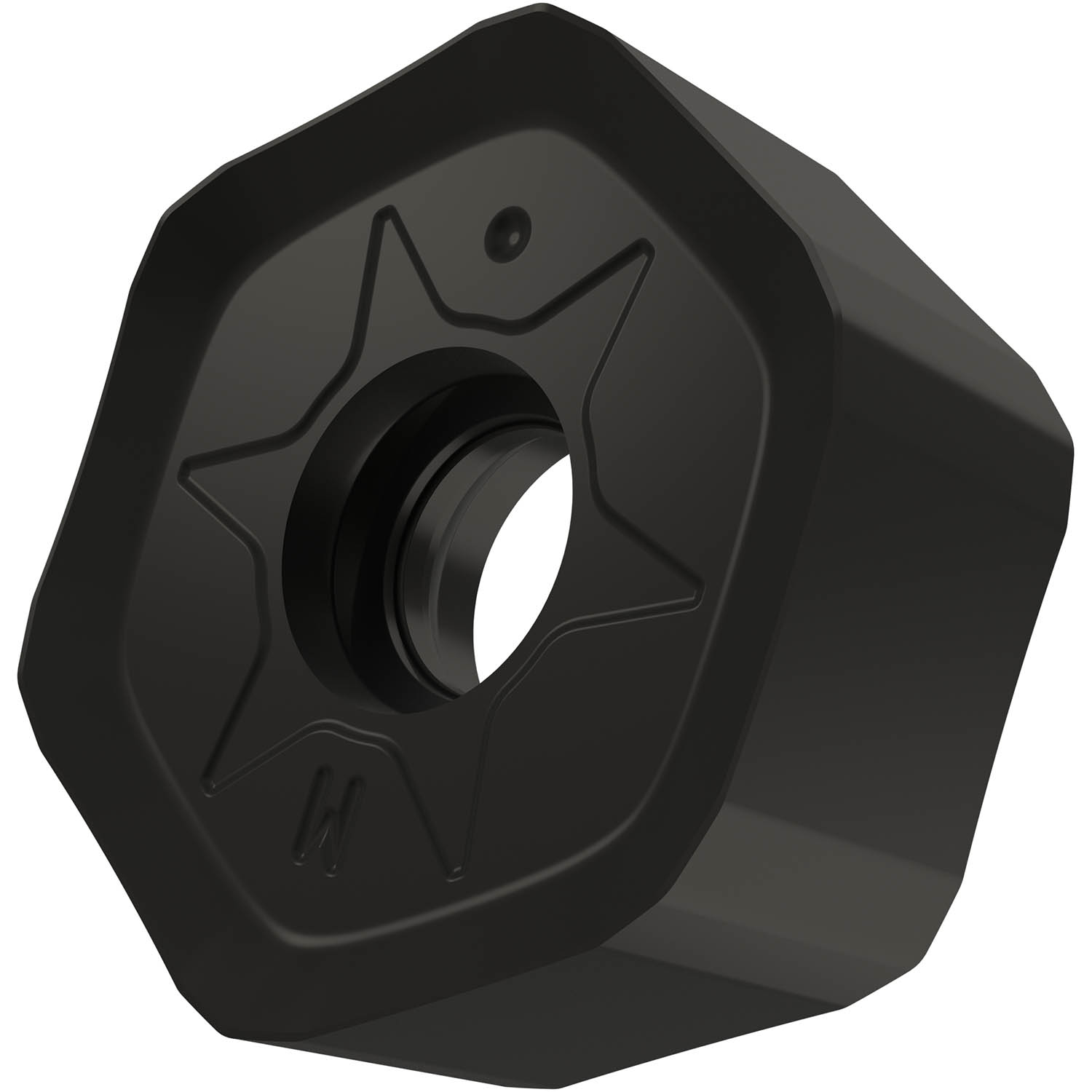

Double-sided milling insert HNGX 0906, hectagonal for a maximum depth of cut of 5.0 mm, with an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M5315 MT-CVD coated WC-Co carbide within ISO-grade range K05-K25 for machining of cast-iron with face mills SHN09C.
Product Specifications
| EDP Number | 6753667 |
| Maximum Depth of Cut (mm) | 5 mm |
| Max Depth of Cut (Inch) | 0.197" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.9 mm |
| Fixing Hole Diameter (Inch) | 0.193" |
| Inscribed Circle Diameter (mm) | 16.5 mm |
| Inscribed Circle Diameter (Inch) | 0.65" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Coating Process | MT-CVD |
| Coating | M5315 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.8 mm |
| Min Depth of Cut (Inch) | 0.031" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
10
