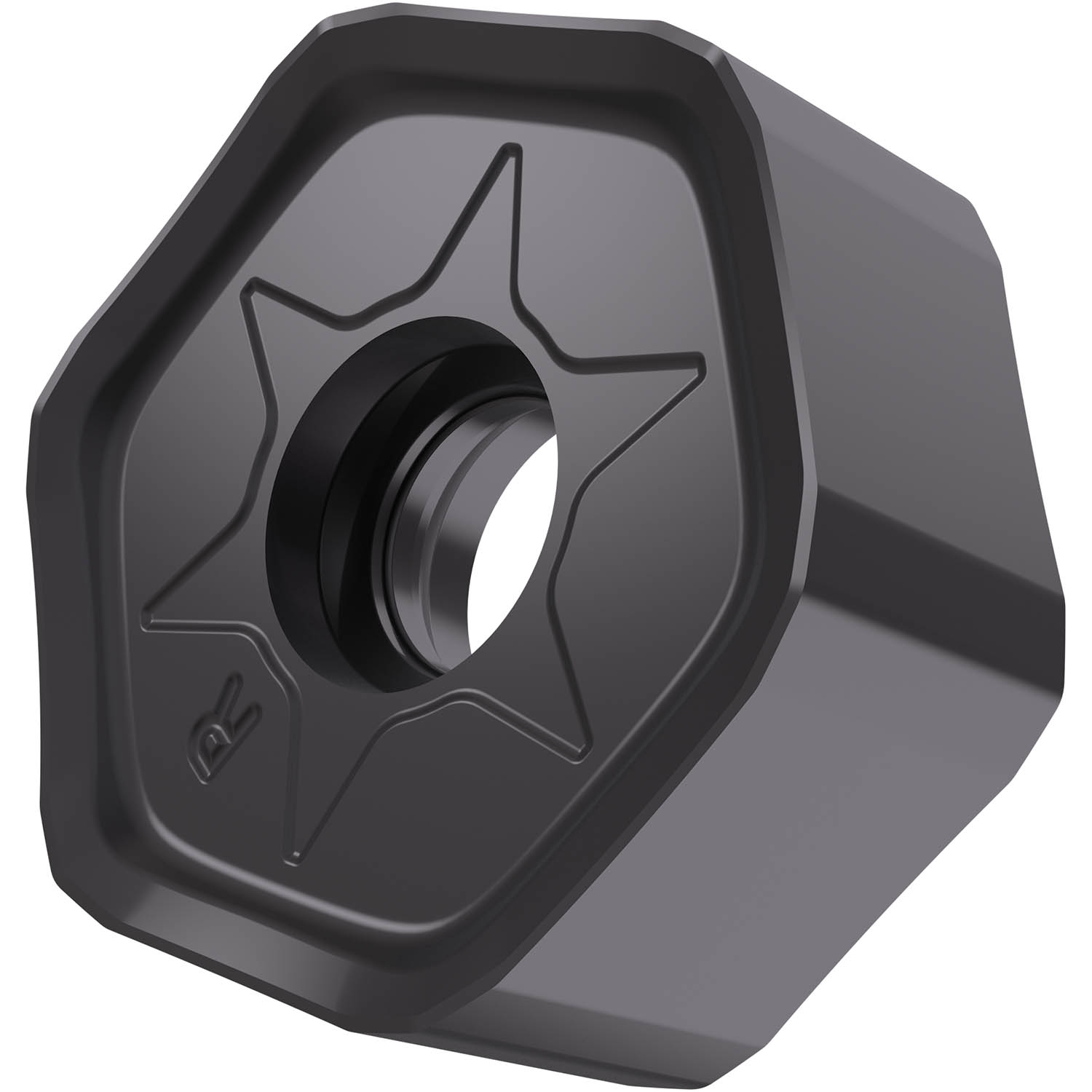

Double-sided milling insert HNGX 0906, hectagonal for a maximum depth of cut of 5.0 mm, with an indexing accuracy according to ISO-tolerance class-G and R geometry with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10 and K01-K10 for machining of steel and cast-iron with face mills SHN09C.
Product Specifications
| EDP Number | 6922530 |
| Maximum Depth of Cut (mm) | 5 mm |
| Max Depth of Cut (Inch) | 0.197" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.9 mm |
| Fixing Hole Diameter (Inch) | 0.193" |
| Inscribed Circle Diameter (mm) | 16.5 mm |
| Inscribed Circle Diameter (Inch) | 0.65" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Coating Process | PVD |
| Coating | M8310 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
