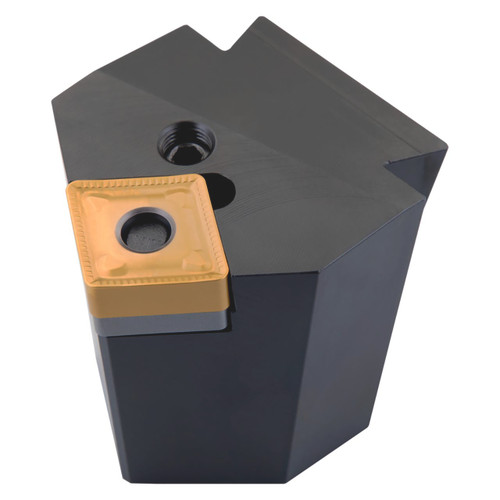

Lever lock modular turning tool cartridge for holding a 80 Degree rhombus negative insert with an inscribed circle diameter of 25.4 mm, 9.52 mm thick (ISO designation CN.. 2509.. ), assemble with DHKR.. for right hand 75 Degree side cutting with straight shank for taper turning, face turning without shoulder and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6758293 |
| Functional Width (mm) | |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Functional Length (mm) | 47 mm |
| Direction of Tool | Right |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
interval quantity:
1
