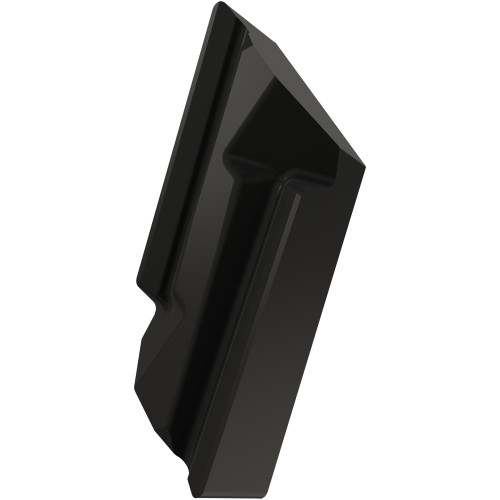

Special design negative turning insert, 55 Degree parallelogram with a main edge length of 16 mm, 4.76 mm thick, 0.5 mm nose radius, indexing accuracy according to ISO-tolerance class-U, chip-breaker 72 with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for fine to medium machining of steels with a right handed turning tool.
Product Specifications
| EDP Number | 6753829 |
| Max Depth of Cut (mm) | 4 mm |
| Max Depth of cut (Inch) | 0.157" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | |
| Cutting Edge Length (mm) | 19.5 mm |
| Cutting Edge Length (Inch) | 0.768" |
| Insert Width (mm) | 9.525 mm |
| Insert Width (Inch) | 0.375" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Corner Radius (mm) | 0.5 mm |
| Corner Radius (Inch) | 0.02" |
| Coating Process | MT-CVD |
| Coating | T9325 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
| Chipbreaker Manufacturer's Designation | 72 |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
49/64"
Length (Decimal Inch):
0.7680"
Length (mm):
19.5mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.5mm
interval quantity:
10
