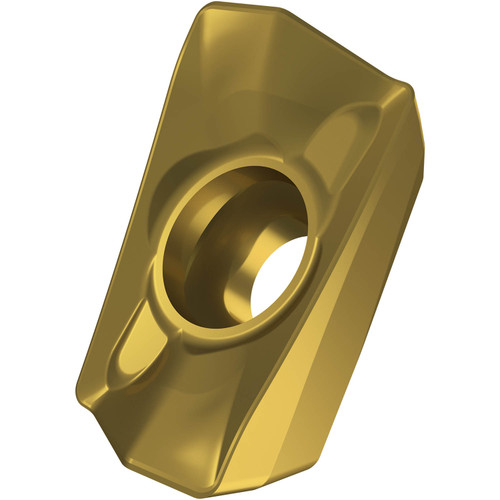

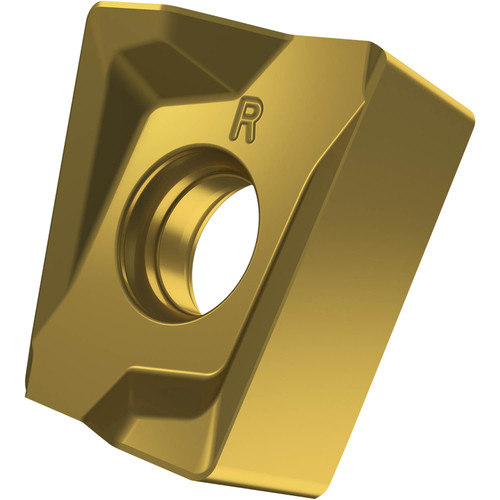

Single-sided milling insert LNET 1606 with chip-breakers, rectangular for a maximum depth of cut of 15.0 mm, with 1.6 mm corner radius, an indexing accuracy according to ISO-tolerance class-E and R geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with shoulder mills with extended flute J(T)-SLSN.
Product Specifications
| EDP Number | 7447895 |
| Maximum Depth of Cut (mm) | 15 mm |
| Max Depth of Cut (Inch) | 0.591" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.9 mm |
| Fixing Hole Diameter (Inch) | 0.232" |
| Cutting Edge Length (mm) | 16.4 mm |
| Cutting Edge Length (Inch) | 0.646" |
| Insert Width (mm) | 13.2 mm |
| Insert Width (Inch) | 0.52" |
| Insert Thickness (mm) | 6.38 mm |
| Insert Thickness (Inch) | 0.251" |
| Corner Radius (mm) | 1.6 mm |
| Corner Radius (Inch) | 0.063" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 1.6 mm |
| Min Depth of Cut (Inch) | 0.063" |
