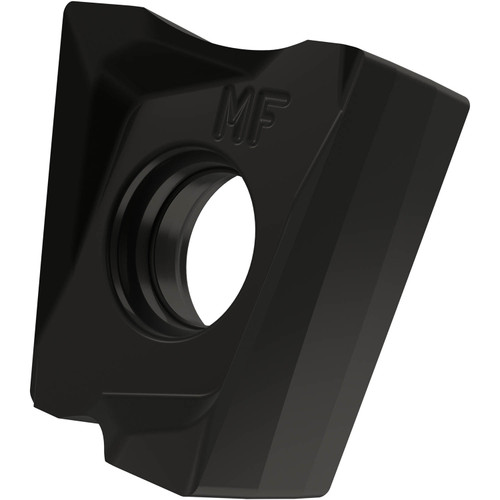

Double-sided milling insert LNGX 1205, rectangular for a maximum depth of cut of 9.0 mm, with 0.4 mm corner radius, an indexing accuracy according to ISO-tolerance class-G and MF geometry with rounded cutting edges, M9340 MT-CVD coated WC-Co carbide within ISO-grade range M30-M40 for machining of stainless-steel with shoulder mills SLN12.
Product Specifications
| EDP Number | 7051435 |
| Maximum Depth of Cut (mm) | 9 mm |
| Max Depth of Cut (Inch) | 0.354" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.5 mm |
| Fixing Hole Diameter (Inch) | 0.177" |
| Cutting Edge Length (mm) | 12 mm |
| Cutting Edge Length (Inch) | 0.472" |
| Insert Width (mm) | 9.5 mm |
| Insert Width (Inch) | 0.374" |
| Insert Thickness (mm) | 5.96 mm |
| Insert Thickness (Inch) | 0.235" |
| Corner Radius (mm) | 0.4 mm |
| Corner Radius (Inch) | 0.016" |
| Coating Process | MT-CVD |
| Coating | M9340 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
