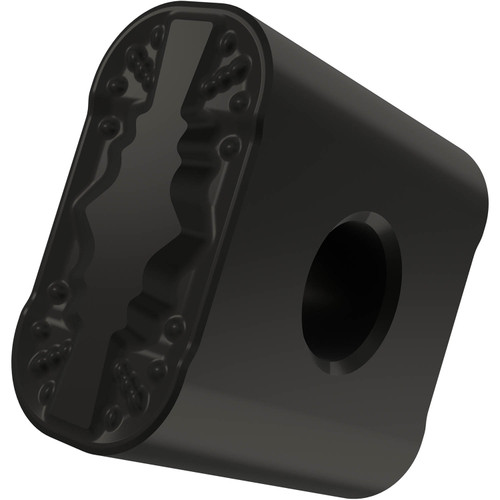

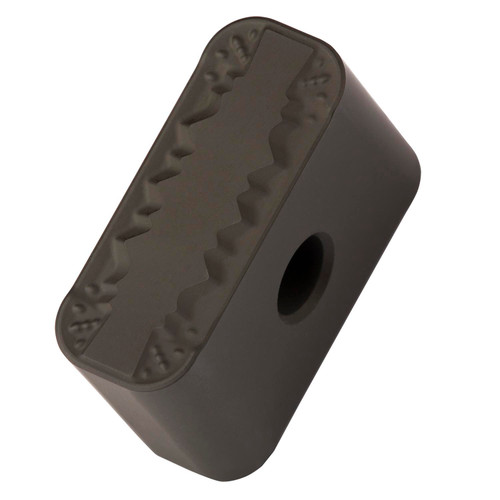

Special design negative turning insert, rectangular with a main edge length of 30 mm, 4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges with facet, in grade T9310, a MT-CVD coated functionally graded WC-Co carbide within ISO range P01-P15, for medium to heavy machining of steels.
Product Specifications
| EDP Number | 6753311 |
| Max Depth of Cut (mm) | 10 mm |
| Max Depth of cut (Inch) | 0.394" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 6.35 mm |
| Fixing Hole Diameter (Inch) | 0.25" |
| Cutting Edge Length (mm) | 30 mm |
| Cutting Edge Length (Inch) | 1.181" |
| Insert Width (mm) | 12 mm |
| Insert Width (Inch) | 0.472" |
| Insert Thickness (mm) | 19.05 mm |
| Insert Thickness (Inch) | 0.75" |
| Corner Radius (mm) | 4 mm |
| Corner Radius (Inch) | 0.157" |
| Coating Process | MT-CVD |
| Coating | T9310 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 2 mm |
| Min Depth of Cut (Inch) | 0.079" |
| Chipbreaker Manufacturer's Designation | RM |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
1-3/16"
Length (Decimal Inch):
1.1810"
Length (mm):
30mm
Thickness (Inch):
3/4"
Thickness (Decimal Inch):
0.7500"
Thickness (mm):
19.05mm
Corner Radius (Inch):
5/32"
Corner Radius (Decimal Inch):
0.1570"
Corner Radius (mm):
4mm
interval quantity:
5
