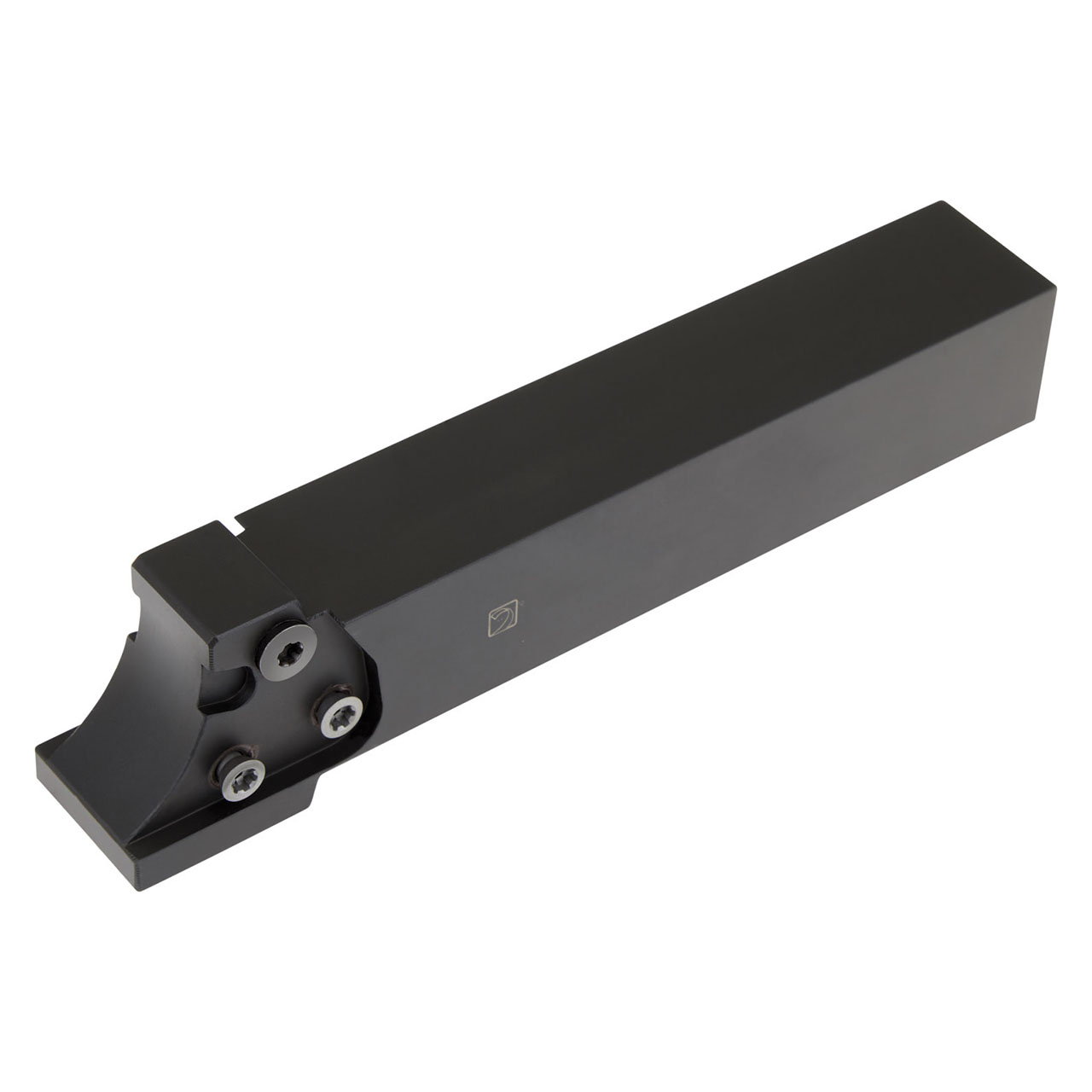

Modular holder for a XLC.. 25..15
tool blade, shank height 25 mm, width 25 mm and length 150 mm.
Product Specifications
| EDP Number | 6756837 |
| Functional Height (mm) | 25 mm |
| Max Cutting Depth (mm) | 15 mm |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 25 mm |
| Shank Width (mm) | 25 mm |
| Overall Length (mm) | 153 mm |
| Overall Length (Inch) | 6.024" |
| Blade Reinforcement Radius (mm) | 25 mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Overall Length (Inch):
6-1/32"
Overall Length (Decimal Inch):
6.0240"
Overall Length (mm):
153mm
Shank Height (Inch):
63/64"
Shank Height (Decimal Inch):
0.9800"
Shank Height (mm):
25mm
Shank Width/Diameter (Inch):
63/64"
Shank Width/Diameter (Decimal Inch):
0.9800"
Shank Width/Diameter (mm):
25mm
interval quantity:
1
