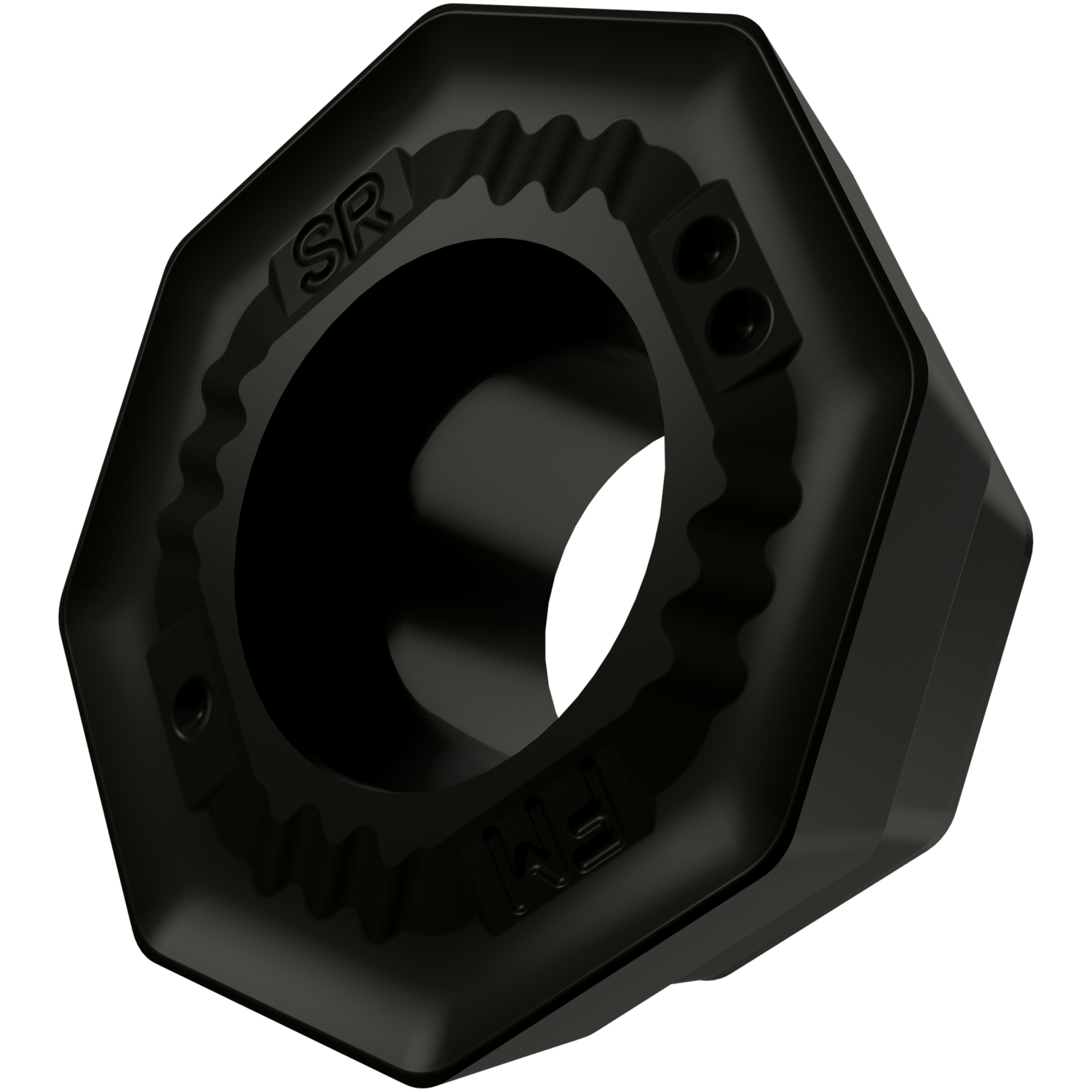

Single-sided milling insert ODMT 0505 with chip-breakers, octagonal for a maximum depth of cut of 3.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and FM geometry with rounded cutting edges and facet, M9340 MT-CVD coated WC-Co carbide for machining with copy face mills SOD05.
Product Specifications
| EDP Number | 7342899 |
| Maximum Depth of Cut (mm) | 3 mm |
| Max Depth of Cut (Inch) | 0.118" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.5 mm |
| Fixing Hole Diameter (Inch) | 0.217" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| Insert Thickness (mm) | 5.56 mm |
| Insert Thickness (Inch) | 0.219" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | MT-CVD |
| Coating | M9340 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
