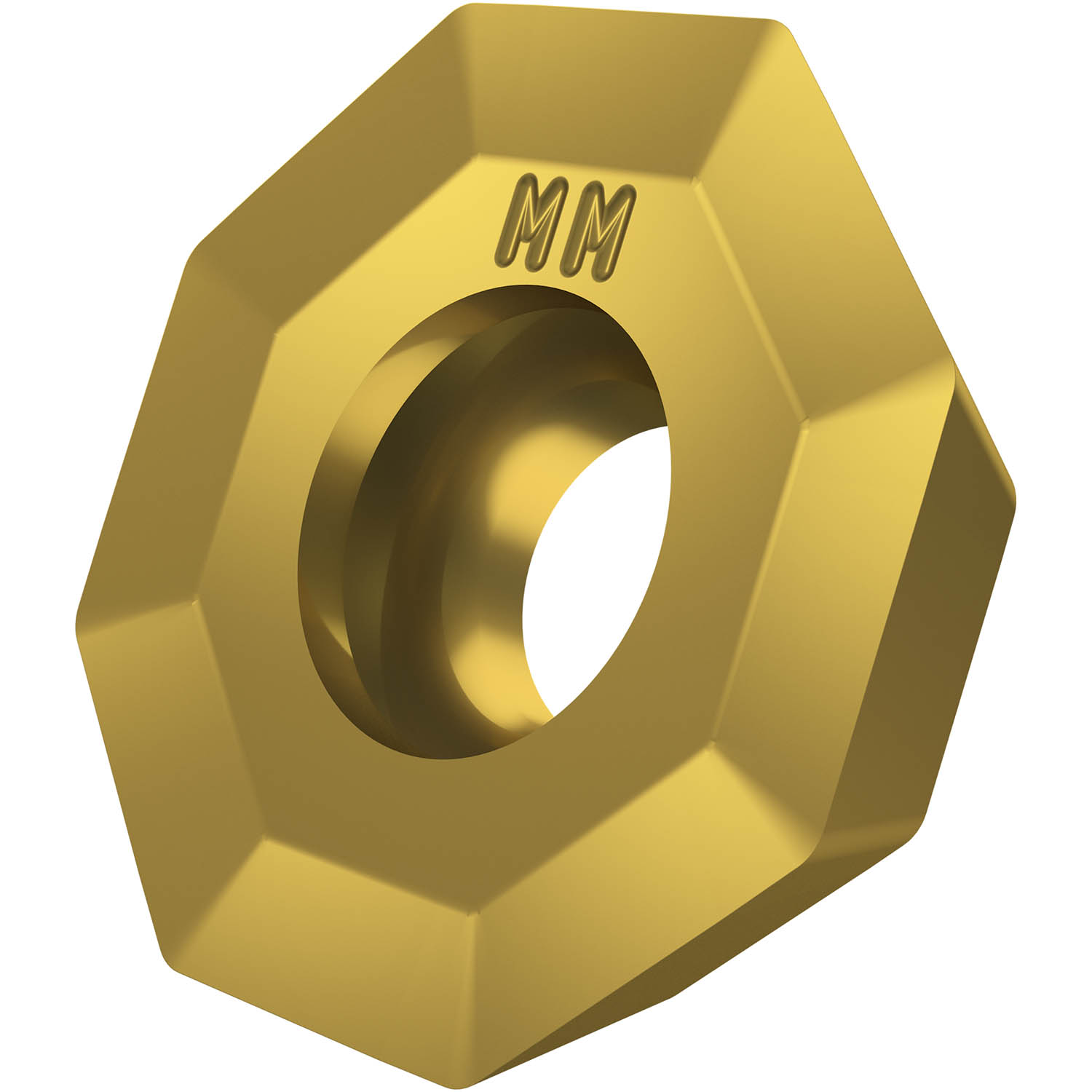

Single-sided milling insert OEHT 0604 with chip-breakers, octagonal for a maximum depth of cut of 3.3 mm, with an indexing accuracy according to ISO-tolerance class-H and mm geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide for machining with face mills SOE06Z.
Product Specifications
| EDP Number | 7447920 |
| Maximum Depth of Cut (mm) | 3.3 mm |
| Max Depth of Cut (Inch) | 0.13" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.5 mm |
| Fixing Hole Diameter (Inch) | 0.217" |
| Inscribed Circle Diameter (mm) | 16.05 mm |
| Inscribed Circle Diameter (Inch) | 0.632" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
