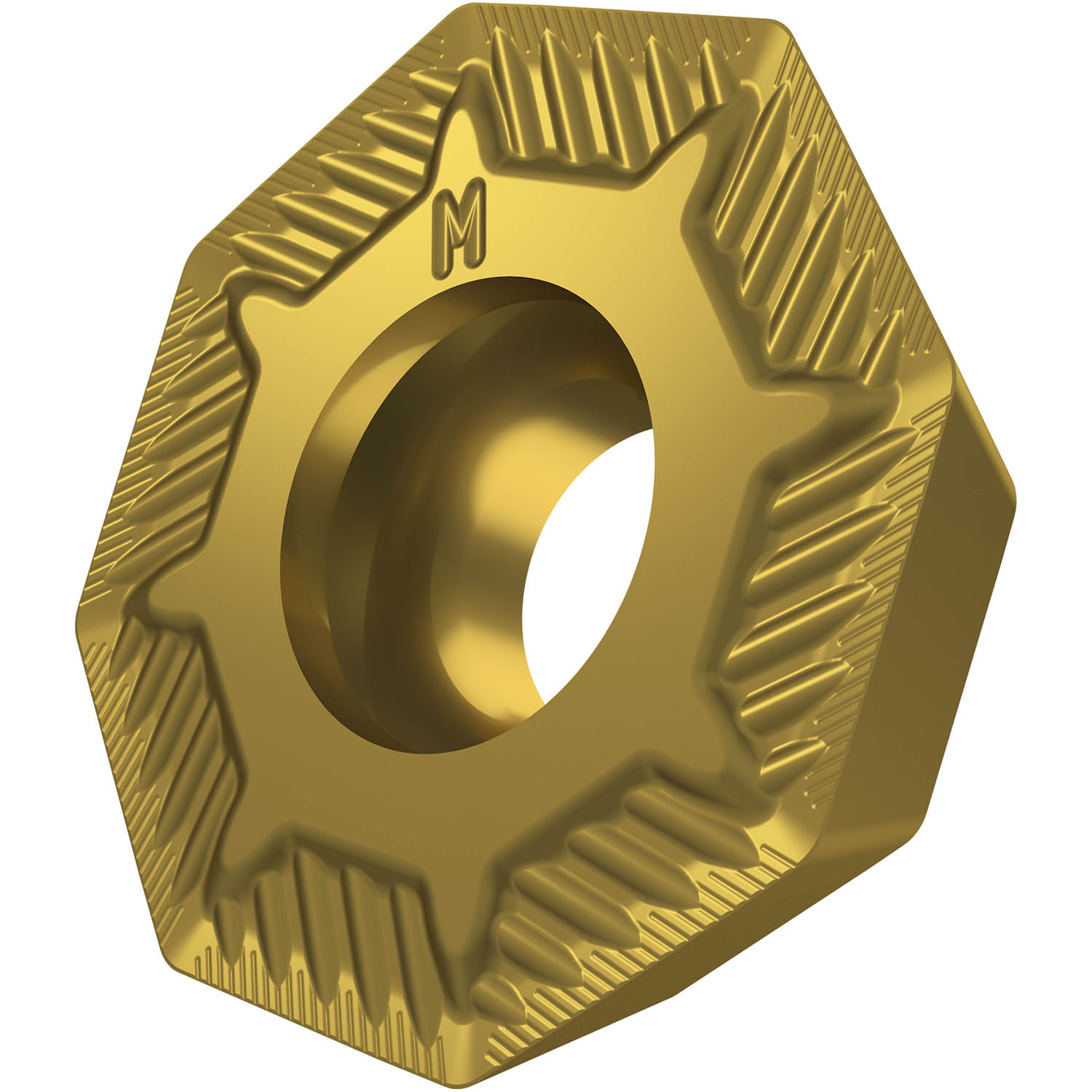

Single-sided milling insert OEHT 0604 with chip-breakers, octagonal for a maximum depth of cut of 3.3 mm, with an indexing accuracy according to ISO-tolerance class-H and M geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade range M20-M35 for machining of stainless-steel with face mills SOE06Z.
Product Specifications
| EDP Number | 7056846 |
| Maximum Depth of Cut (mm) | 3.3 mm |
| Max Depth of Cut (Inch) | 0.13" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.5 mm |
| Fixing Hole Diameter (Inch) | 0.217" |
| Inscribed Circle Diameter (mm) | 16.05 mm |
| Inscribed Circle Diameter (Inch) | 0.632" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Coating Process | PVD |
| Coating | M6330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
