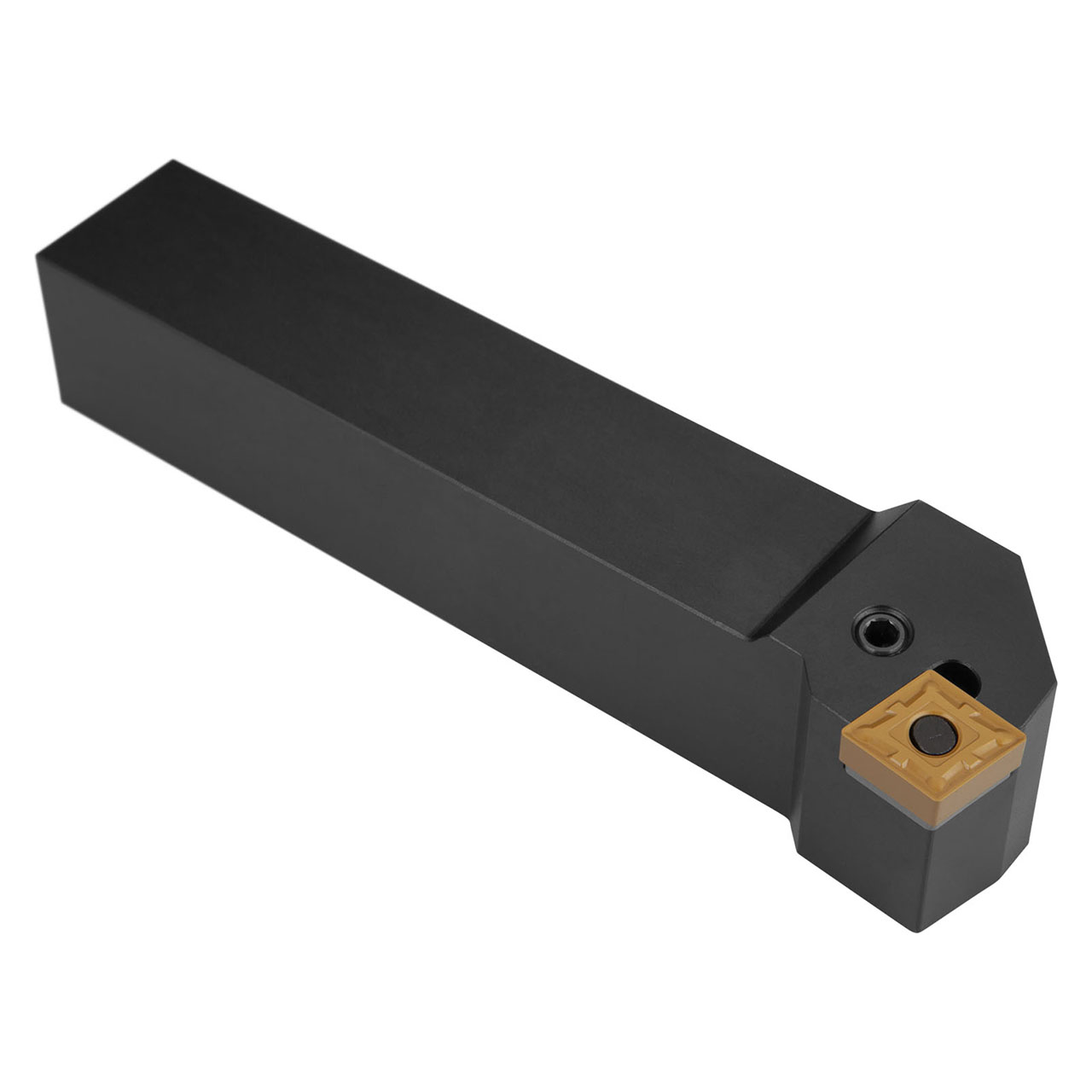

Lever lock turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 15.575 mm, 6.35 mm thick (ISO designation CN.. 1606.. ), left hand 75° end cutting with off-set shank, 32 mm tool height x 32 mm width x 170 mm long for face turning without shoulder.
Product Specifications
| EDP Number | 6757285 |
| Functional Height (mm) | 32 mm |
| Functional Width (mm) | |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 32 mm |
| Shank Width (mm) | 32 mm |
| Functional Length (mm) | 170 mm |
| Head Length (mm) | 40 mm |
| Direction of Tool | Left |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Width (Inch):
1-17/64"
Shank Width (Decimal Inch):
1.2600"
Shank Width (mm):
32mm
Shank Height (Inch):
117/64"
Shank Height (Decimal Inch):
1.2600"
Shank Height (mm):
32mm
