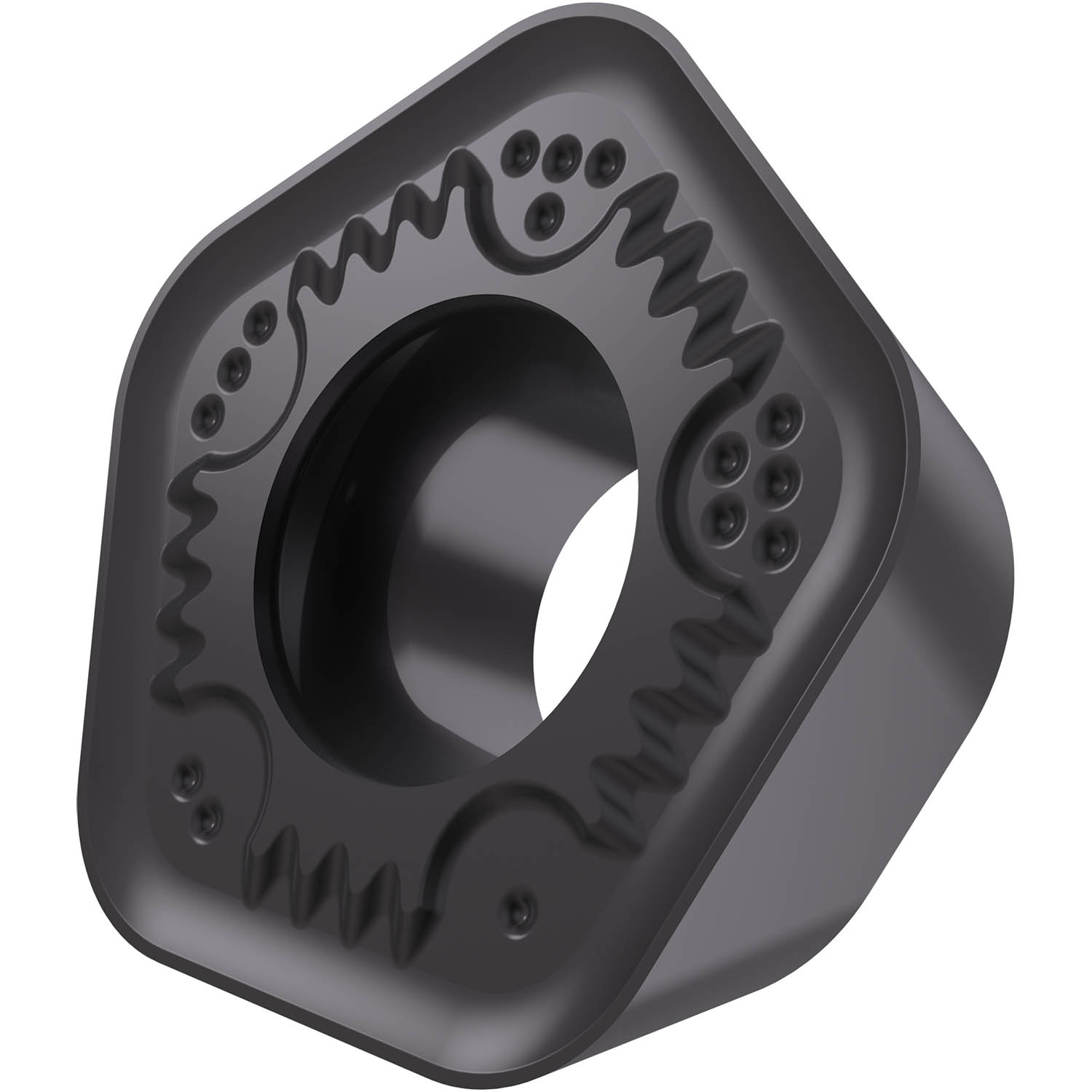

Pramet PDKT 090530ER-FM:M8310 | 13.5 mm Diameter x 5.47 mm Thickness M8310 Grade Milling Insert

$20.30 $14.25
(You save $6.05)
Brand:
Pramet
interval quantity:
10
SKU:
23150764
UPC:
Weight:
0.02 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Single-sided milling insert PDKT 0905 with chip-breakers, pentagonal for a maximum depth of cut of 2.0 mm, with 3.0 mm corner radius, an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges, M8310 PVD coated fine grained WC-Co carbide within ISO-grade range P01-P10 for machining of steel with high feed cutters SPD09.

Product Specifications
EDP Number6922543
Maximum Depth of Cut (mm)2 mm
Max Depth of Cut (Inch)0.079"
Coating Property1
Fixing Hole Diameter (mm)5.5 mm
Fixing Hole Diameter (Inch)0.217"
Cutting Edge Length (mm)9 mm
Cutting Edge Length (Inch)0.354"
Inscribed Circle Diameter (mm)13.5 mm
Inscribed Circle Diameter (Inch)0.531"
Insert Thickness (mm)5.47 mm
Insert Thickness (Inch)0.215"
Corner Radius (mm)3 mm
Corner Radius (Inch)0.118"
Coating ProcessPVD
CoatingM8310
Surface ColorPurple - Black
Min Depth of Cut (mm)0.3 mm
Min Depth of Cut (Inch)0.012"
Country of originCzech Republic
