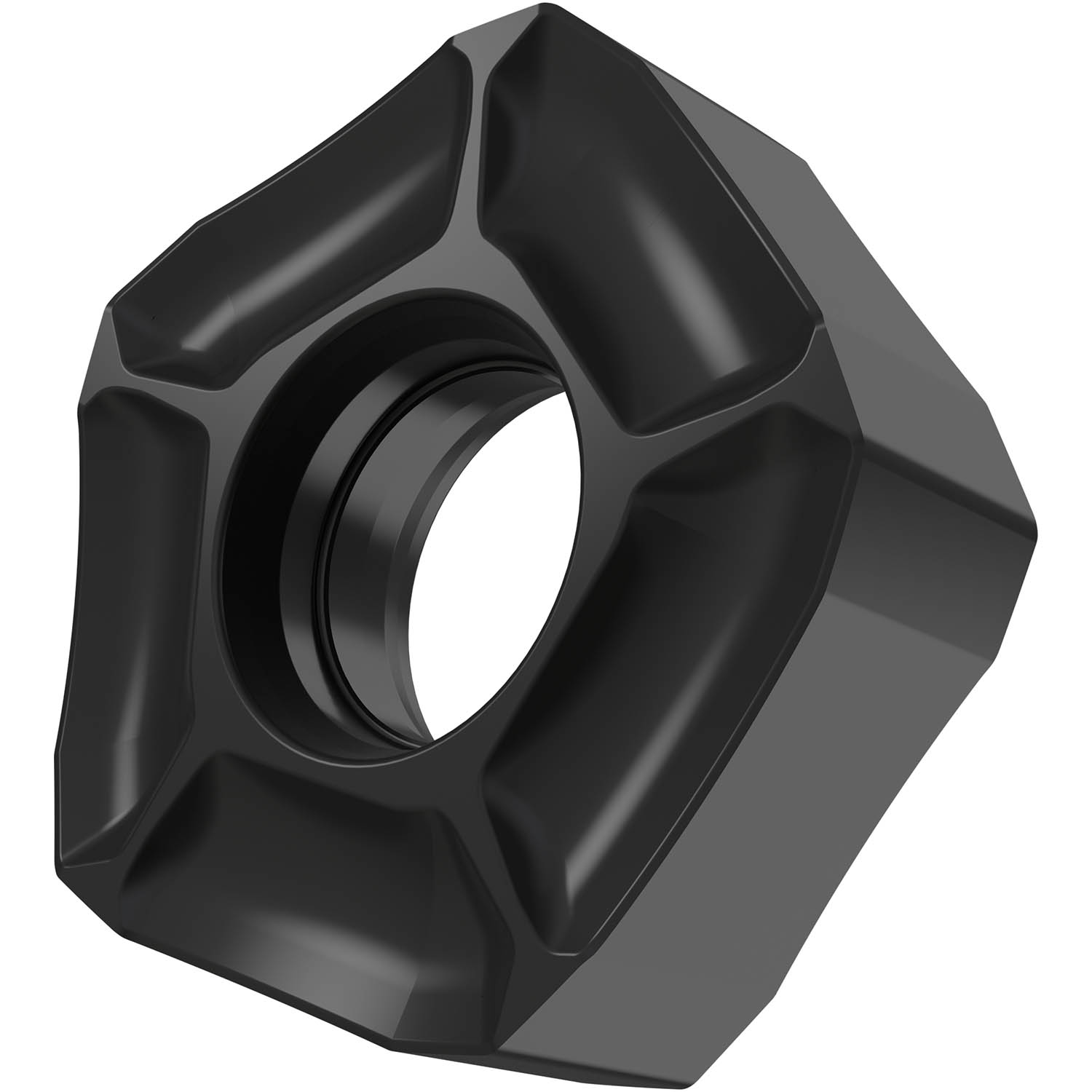

Double-sided milling insert PNMU 1308 with chip-breakers, pentagonal for a maximum depth of cut of 10.0 mm, with an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with face mills SPN13.
Product Specifications
| EDP Number | 6756164 |
| Maximum Depth of Cut (mm) | 10 mm |
| Max Depth of Cut (Inch) | 0.394" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 10 mm |
| Fixing Hole Diameter (Inch) | 0.394" |
| Cutting Edge Length (mm) | 13 mm |
| Cutting Edge Length (Inch) | 0.512" |
| Inscribed Circle Diameter (mm) | 24.4 mm |
| Inscribed Circle Diameter (Inch) | 0.961" |
| Insert Thickness (mm) | 7.94 mm |
| Insert Thickness (Inch) | 0.313" |
| Wiper Edge Length (mm) | 3 mm |
| Wiper Edge Length (Inch) | 0.118" |
| Coating Process | PVD |
| Coating | M8345 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
