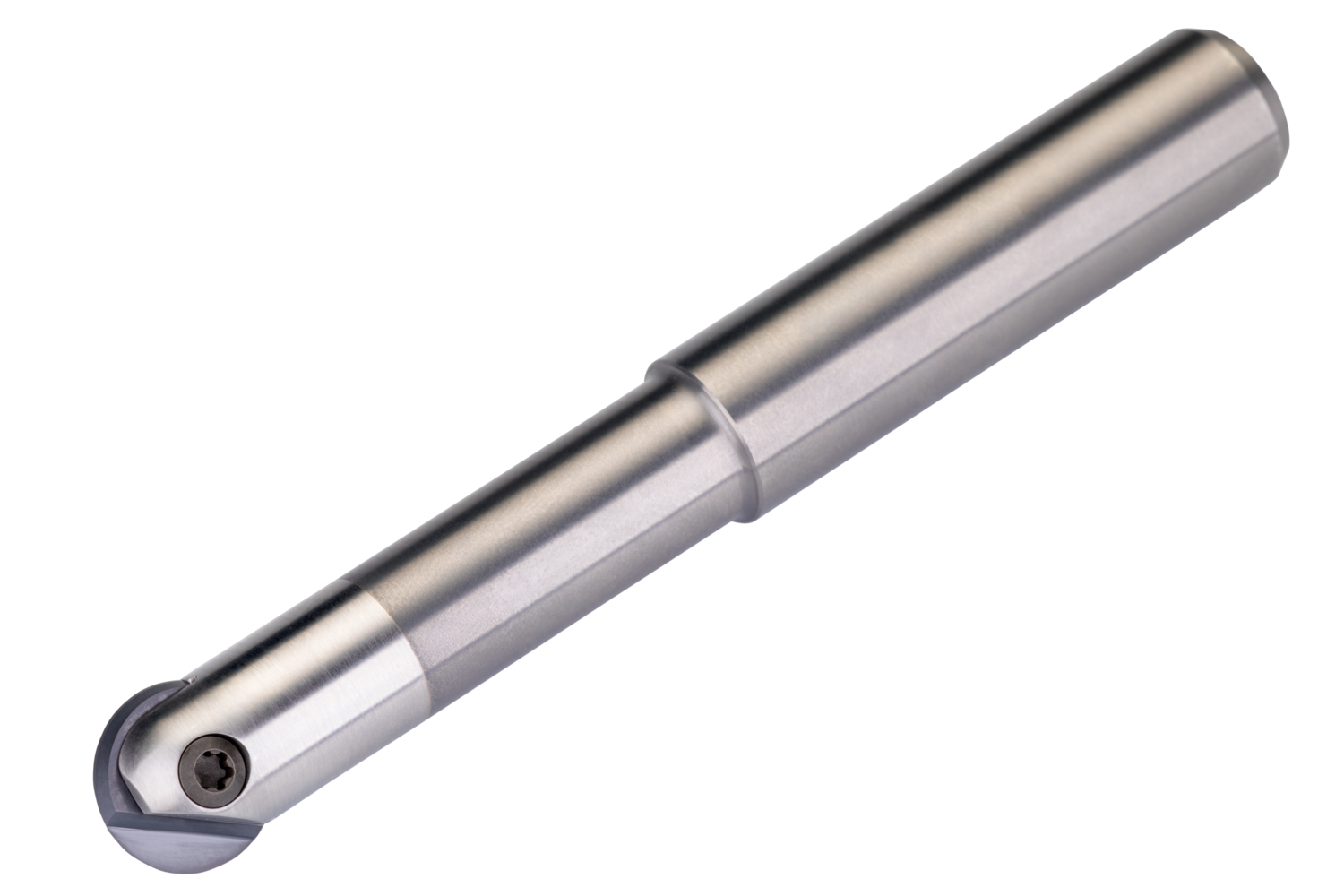

Copy end mill which utilises 1 off PPH 08.., PPHT 08.. or PPHF 08.. single-sided insert, cutting diameter 8 mm with 12 mm carbide parallel shank according to DIN 1835A, 19 mm functional and 110 mm overall length for copy milling with a maximum depth of cut of 0.3-4.0 mm.
Product Specifications
| EDP Number | 7024731 |
| Insert Index Count | 1 |
| Max Rotational Speed | 40000 |
| Connection Diameter (mm) | 12 mm |
| Connection Diameter (Inch) | 0.472" |
| Max Cutting Diameter (mm) | 8 mm |
| Body Diameter (mm) | 6.5 mm |
| Body Diameter (Inch) | 0.256" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 53 mm |
| Max Usable Length (mm) | 30.1 mm |
| 19 mm |
