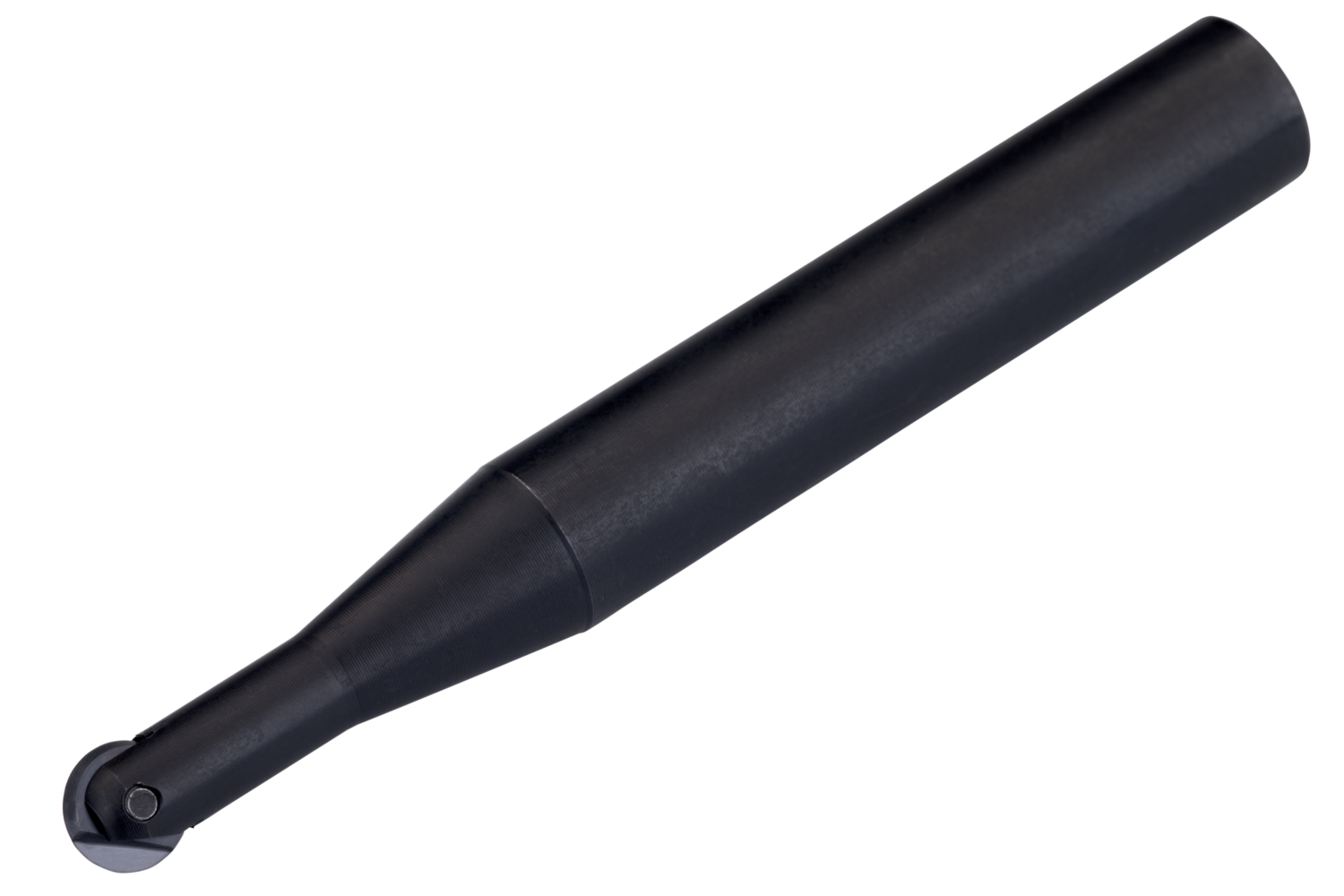

Copy end mill which utilises 1 off PPH 10.., PPHE 10.., PPHT 10.. or PPHF 10.. single-sided insert, cutting diameter 10 mm with 12 mm parallel shank according to DIN 1835A, 21.8 mm functional and 132 mm overall length for copy milling with a maximum depth of cut of 0.3-4.0 mm.
Product Specifications
| EDP Number | 7024739 |
| Insert Index Count | 1 |
| Max Rotational Speed | 20300 |
| Connection Diameter (mm) | 12 mm |
| Connection Diameter (Inch) | 0.472" |
| Max Cutting Diameter (mm) | 10 mm |
| Body Diameter (mm) | 8 mm |
| Body Diameter (Inch) | 0.315" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 75 mm |
| Max Usable Length (mm) | 73.6 mm |
| 21.8 mm |
