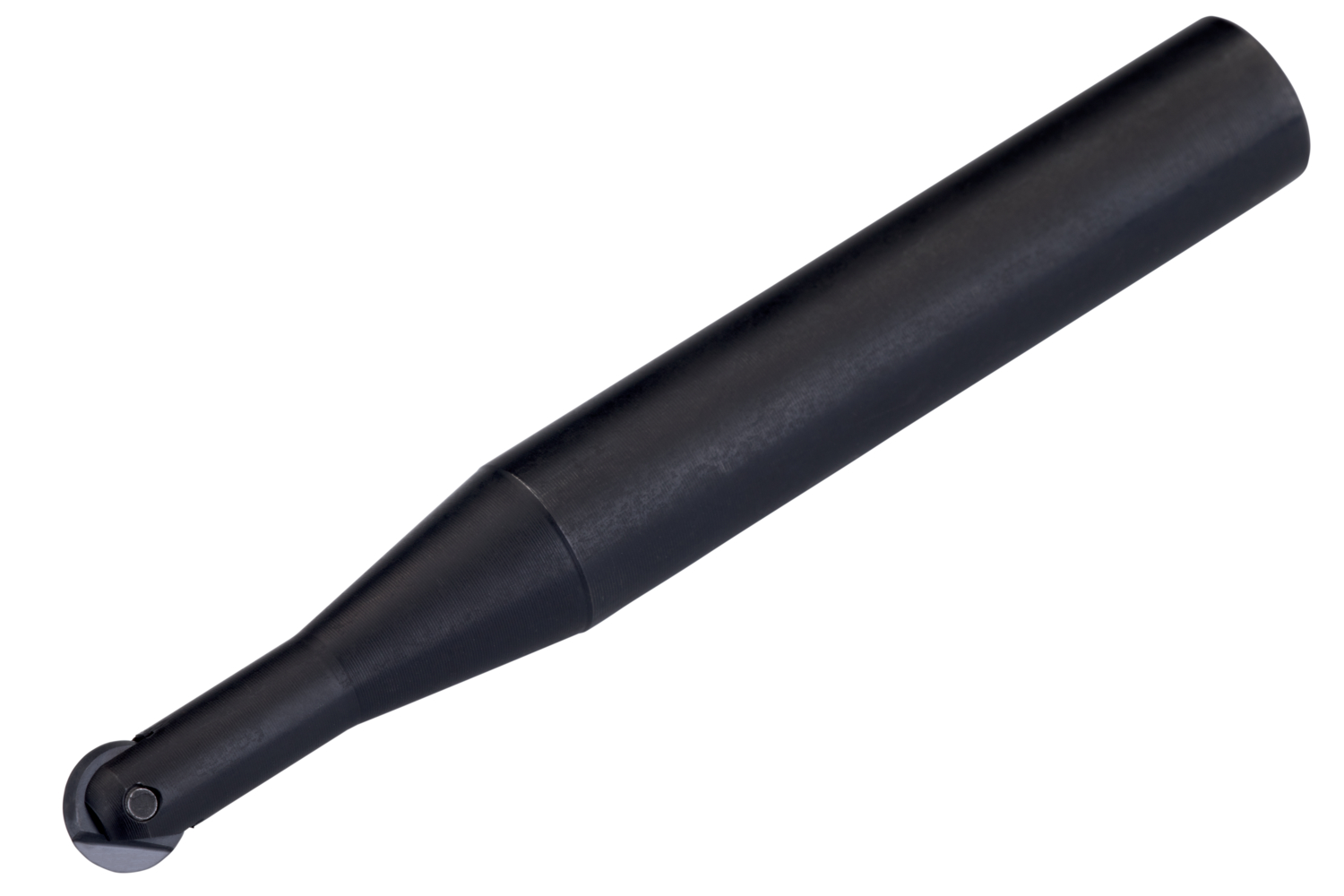

Copy end mill which utilises 1 off PPH 32.. single-sided insert, cutting diameter 32 mm with 32 mm parallel shank according to DIN 1835A, 186 mm overall length for copy milling with a maximum depth of cut of 0.3-4.0 mm.
Product Specifications
| EDP Number | 7024767 |
| Insert Index Count | 1 |
| Max Rotational Speed | 32500 |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Max Cutting Diameter (mm) | 32 mm |
| Body Diameter (mm) | 26 mm |
| Body Diameter (Inch) | 1.024" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 107 mm |
