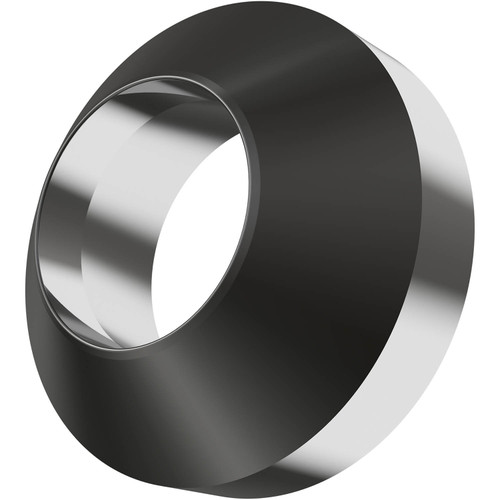

Scarfing ring with an outside diameter of 19 mm, an inside diameter of 10 mm, 8 mm thick and a working radius of 11.4 mm for tube diameters from 28 to 30 mm, T9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P45 and M15-M40 for deburring the inside of steel and stainless-steel tubes and pipes.
Product Specifications
| EDP Number | 6801206 |
| Profile Radius (mm) | 11.4 mm |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Inscribed Circle Diameter (mm) | 19 mm |
| Inscribed Circle Diameter (Inch) | 0.748" |
| Insert Diameter (mm) | 19 mm |
| Insert Cutting Diameter (mm) | 10 mm |
| Insert Thickness (mm) | 8 mm |
| Coating Process | MT-CVD |
| Coating | T9335 |
| Surface Color | Black |
| Insert Cutting Diameter (Inch) | 0.394" |
| Chipbreaker Manufacturer's Designation | No chipbreaker |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Inscribed Circle (Inch):
3/4"
Inscribed Circle (Decimal Inch):
0.7480"
Inscribed Circle (mm):
19mm
Thickness (Inch):
5/16"
Thickness (Decimal Inch):
0.3100"
Thickness (mm):
8mm
interval quantity:
10
