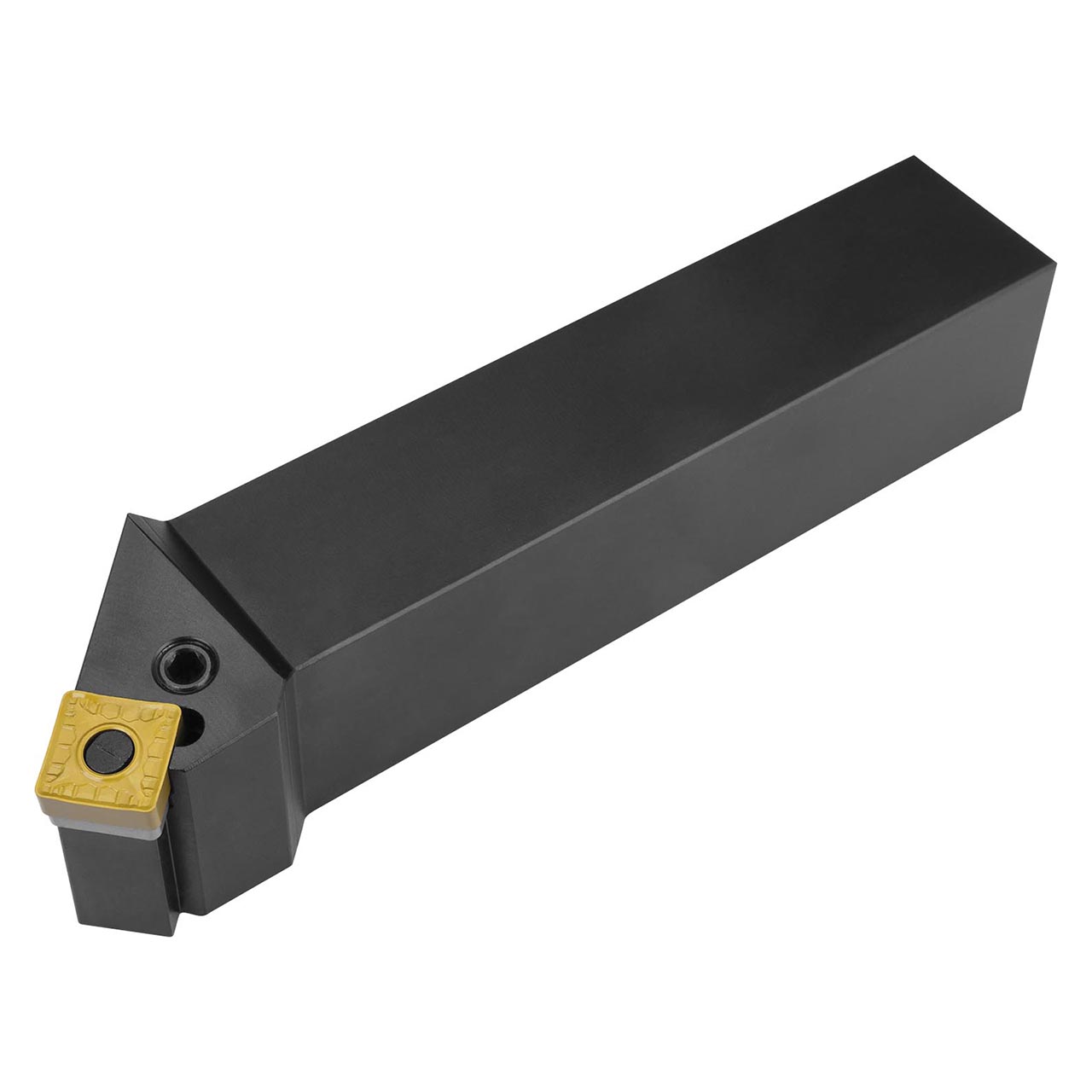

Lever lock turning tool for holding a square negative insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation SN.. 1204.. ), right hand 45° side cutting with off-set shank, 20 mm tool height x 20 mm width x 125 mm long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6756909 |
| Functional Height (mm) | 20 mm |
| Functional Width (mm) | |
| Orthogonal Rake Angle | -8 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 20 mm |
| Shank Width (mm) | 20 mm |
| Overall Length (mm) | 133.3 mm |
| Overall Length (Inch) | 5.248" |
| Functional Length (mm) | 125 mm |
| Head Length (mm) | 36 mm |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-8
Shank Width (Inch):
25/32"
Shank Height (Inch):
25/32"
