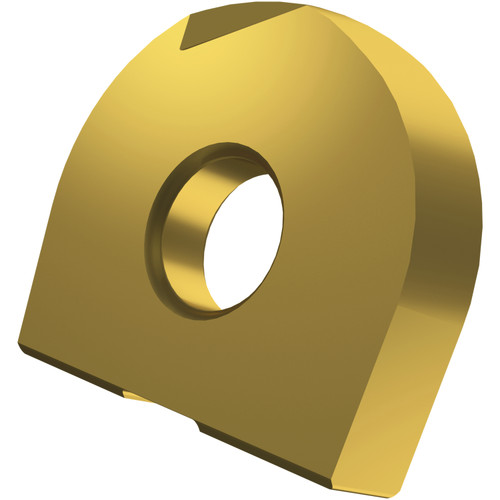

Ball nosed copy milling insert with a diameter of 12 mm for a maximum depth of cut of 1.2 mm, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy end mills K2-SRC.
Product Specifications
| EDP Number | 7637788 |
| Maximum Depth of Cut (mm) | 1.2 mm |
| Max Depth of Cut (Inch) | 0.047" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5 mm |
| Fixing Hole Diameter (Inch) | 0.197" |
| Insert Cutting Diameter (mm) | 12 mm |
| Insert Length (mm) | 12 mm |
| Insert Length (Inch) | 0.472" |
| Insert Thickness (mm) | 2.5 mm |
| Insert Thickness (Inch) | 0.098" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Insert Cutting Diameter (Inch) | 0.472" |
| Min Depth of Cut (mm) | 0.4 mm |
| Min Depth of Cut (Inch) | 0.016" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
10
