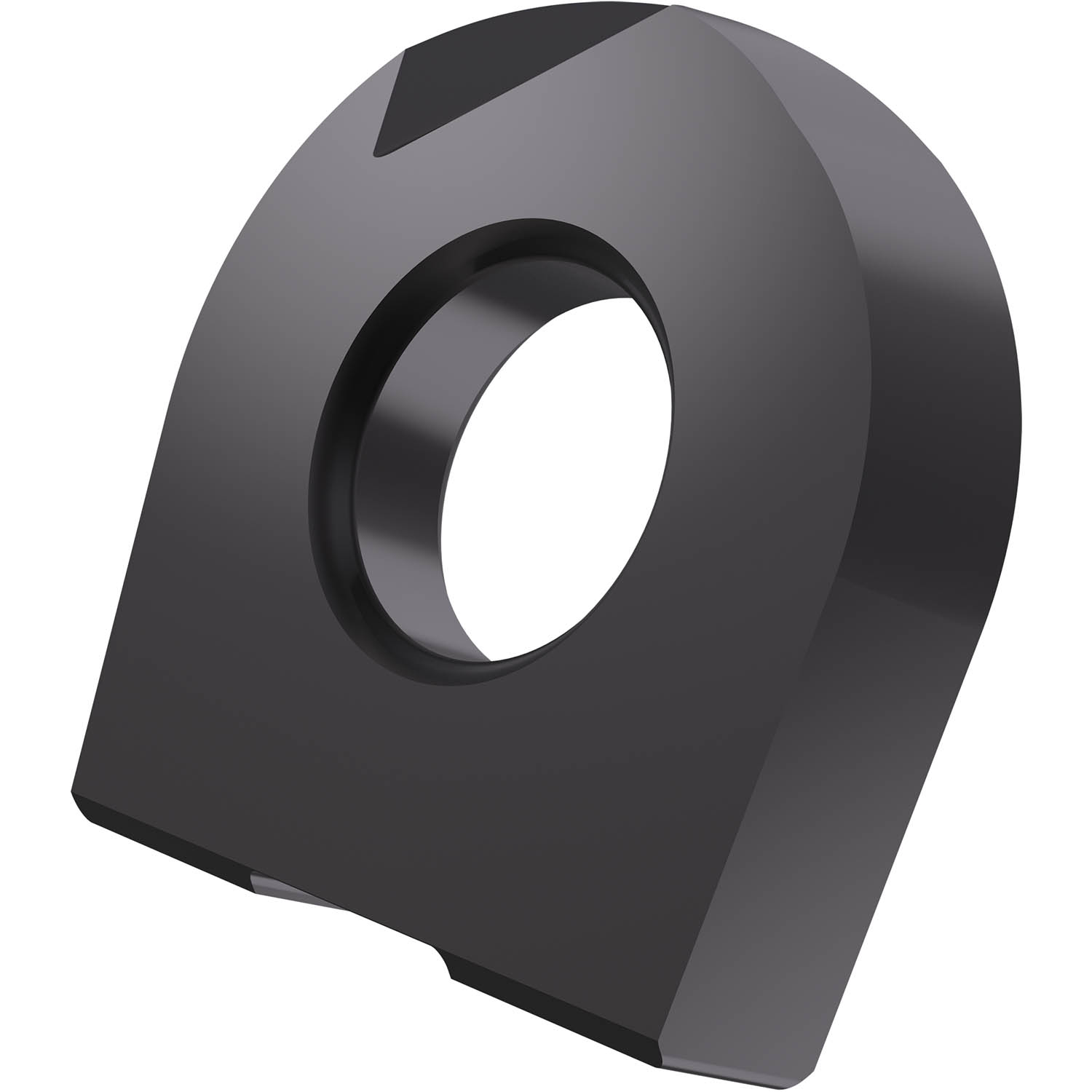

Ball nosed copy milling insert with a diameter of 20 mm for a maximum depth of cut of 2.0 mm, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with copy end mills K2-SRC.
Product Specifications
| EDP Number | 6922549 |
| Maximum Depth of Cut (mm) | 2 mm |
| Max Depth of Cut (Inch) | 0.079" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5 mm |
| Fixing Hole Diameter (Inch) | 0.197" |
| Insert Cutting Diameter (mm) | 20 mm |
| Insert Length (mm) | 16 mm |
| Insert Length (Inch) | 0.63" |
| Insert Thickness (mm) | 3 mm |
| Insert Thickness (Inch) | 0.118" |
| Coating Process | PVD |
| Coating | M8310 |
| Surface Color | Purple - Black |
| Insert Cutting Diameter (Inch) | 0.787" |
| Min Depth of Cut (mm) | 0.6 mm |
| Min Depth of Cut (Inch) | 0.024" |
