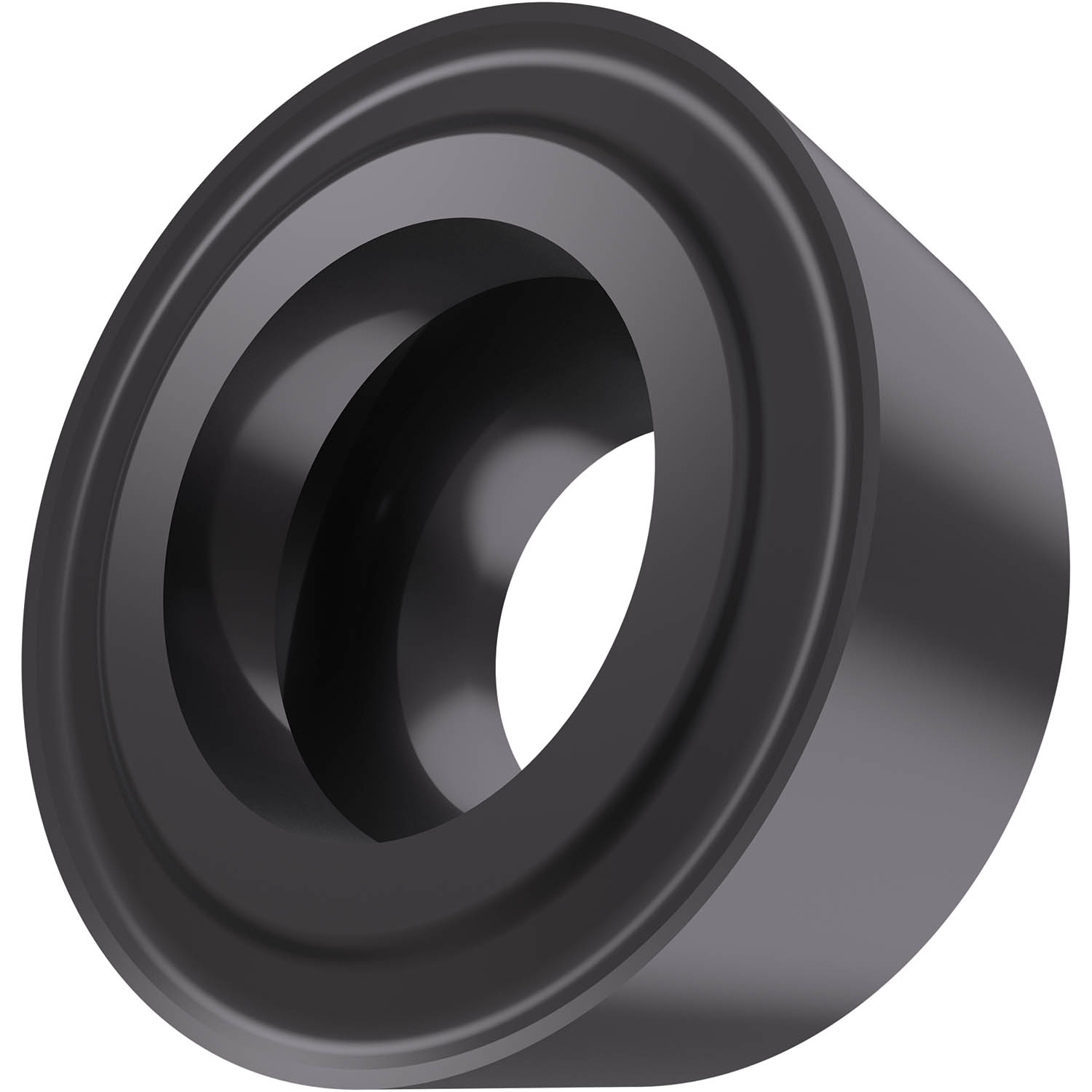

Single-sided positive turning insert, round with 7 Degree clearance, a diameter of 6 mm, 2.38 mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO range M01-M15, for fine to heavy machining of stainless-steels.
Product Specifications
| EDP Number | 7168659 |
| Max Depth of Cut (mm) | 1.5 mm |
| Max Depth of cut (Inch) | 0.059" |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 2.8 mm |
| Fixing Hole Diameter (Inch) | 0.11" |
| Insert Diameter (mm) | 6 mm |
| 0.236" | |
| Insert Thickness (mm) | 2.38 mm |
| Insert Thickness (Inch) | 0.094" |
| Coating Process | PVD |
| Coating | T6310 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.2 mm |
| Min Depth of Cut (Inch) | 0.008" |
| Chipbreaker Manufacturer's Designation | UR |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.38mm
interval quantity:
10
