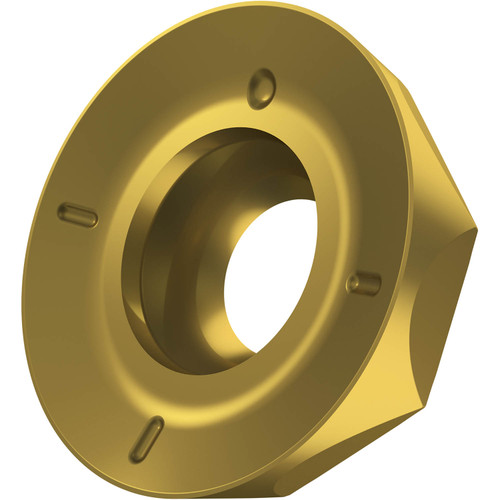

Single-sided milling insert RCMT 1606 with chip-breakers, round for a maximum depth of cut of 8.0 mm, with an indexing accuracy according to ISO-tolerance class-M and F geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with copy face mills SRC16.
Product Specifications
| EDP Number | 7447952 |
| Maximum Depth of Cut (mm) | 8 mm |
| Max Depth of Cut (Inch) | 0.315" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.5 mm |
| Fixing Hole Diameter (Inch) | 0.217" |
| Insert Diameter (mm) | 16 mm |
| Insert Diameter (Inch) | 0.63" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
