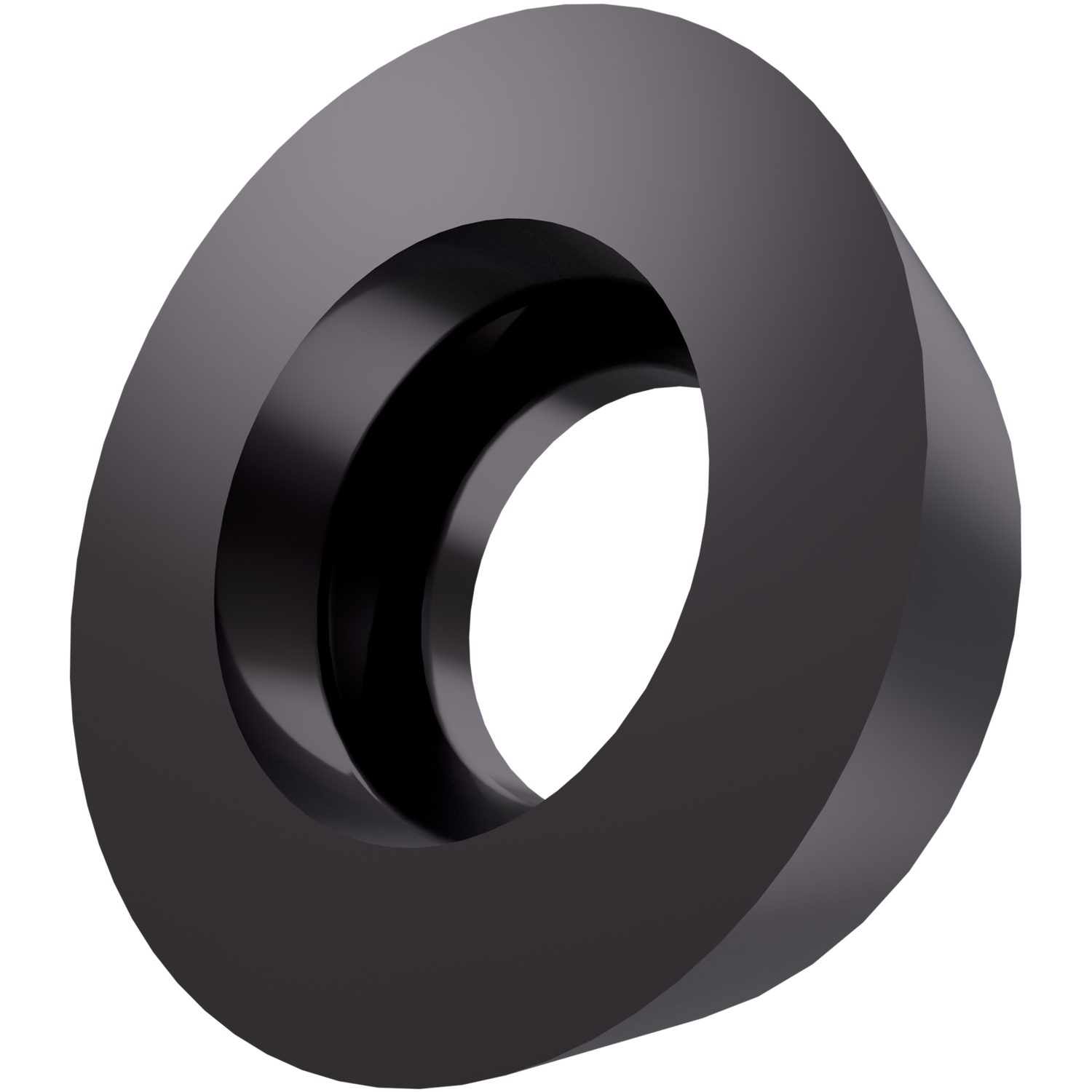

Single-sided milling insert RDHX 0501, round for a maximum depth of cut of 1.5 mm, with an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K01-K10 and H05-H15 for machining of cast-iron and hardened material with copy face mills SRD05.
Product Specifications
| EDP Number | 6756281 |
| Maximum Depth of Cut (mm) | 1.5 mm |
| Max Depth of Cut (Inch) | 0.059" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.2 mm |
| Fixing Hole Diameter (Inch) | 0.087" |
| Insert Diameter (mm) | 5 mm |
| Insert Diameter (Inch) | 0.197" |
| Insert Thickness (mm) | 1.51 mm |
| Insert Thickness (Inch) | 0.059" |
| Coating Process | PVD |
| Coating | M8310 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
