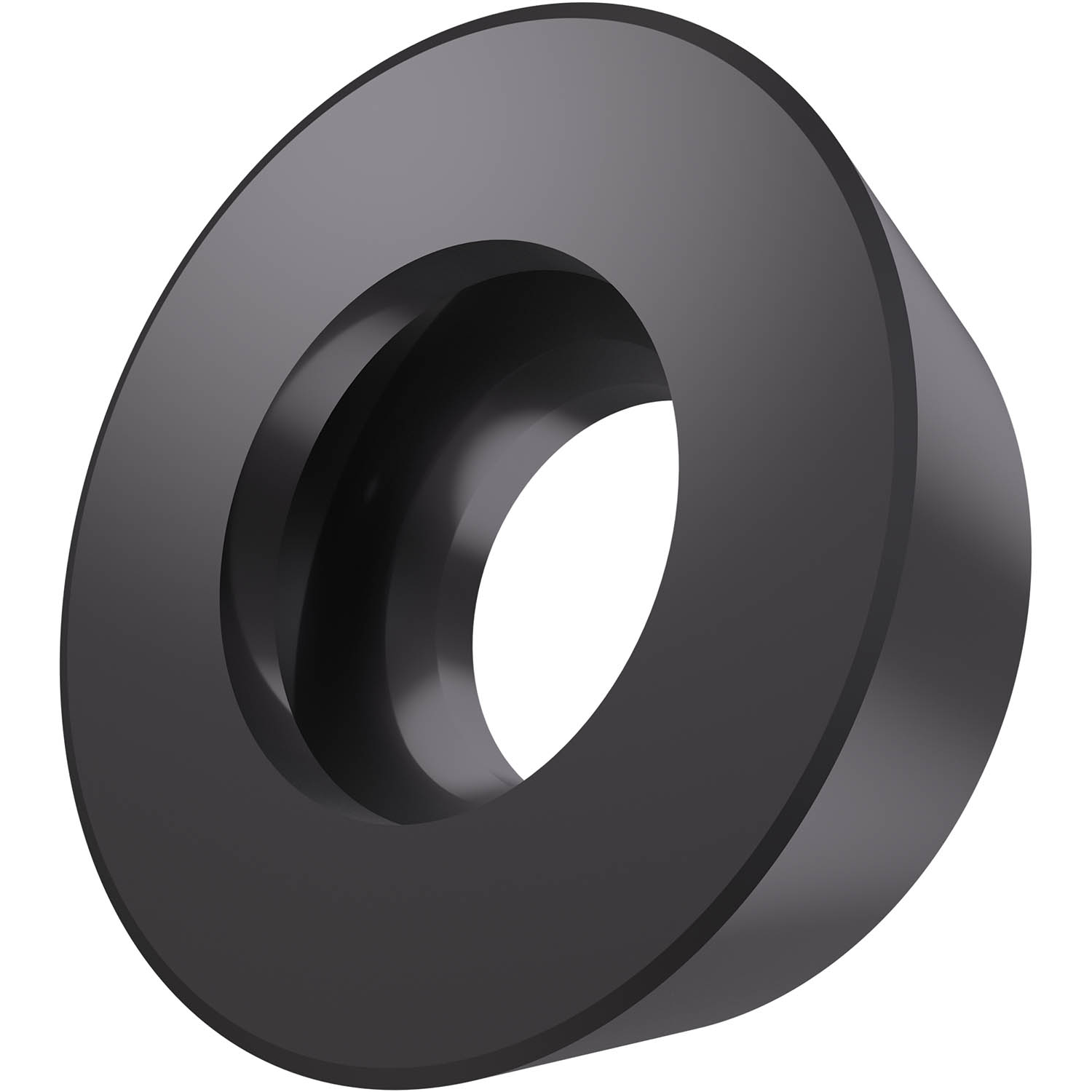

Single-sided milling insert RDHX 0702, round for a maximum depth of cut of 2.0 mm, with an indexing accuracy according to ISO-tolerance class-H with cutting edges with facet, M8325 PVD coated WC-(Ti, Ta, Nb)C-Co carbide for machining with copy face mills SRD07.
Product Specifications
| EDP Number | 6756003 |
| Maximum Depth of Cut (mm) | 2 mm |
| Max Depth of Cut (Inch) | 0.079" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.8 mm |
| Fixing Hole Diameter (Inch) | 0.11" |
| Insert Diameter (mm) | 7 mm |
| Insert Diameter (Inch) | 0.276" |
| Insert Thickness (mm) | 2.38 mm |
| Insert Thickness (Inch) | 0.094" |
| Coating Process | PVD |
| Coating | M8325 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
