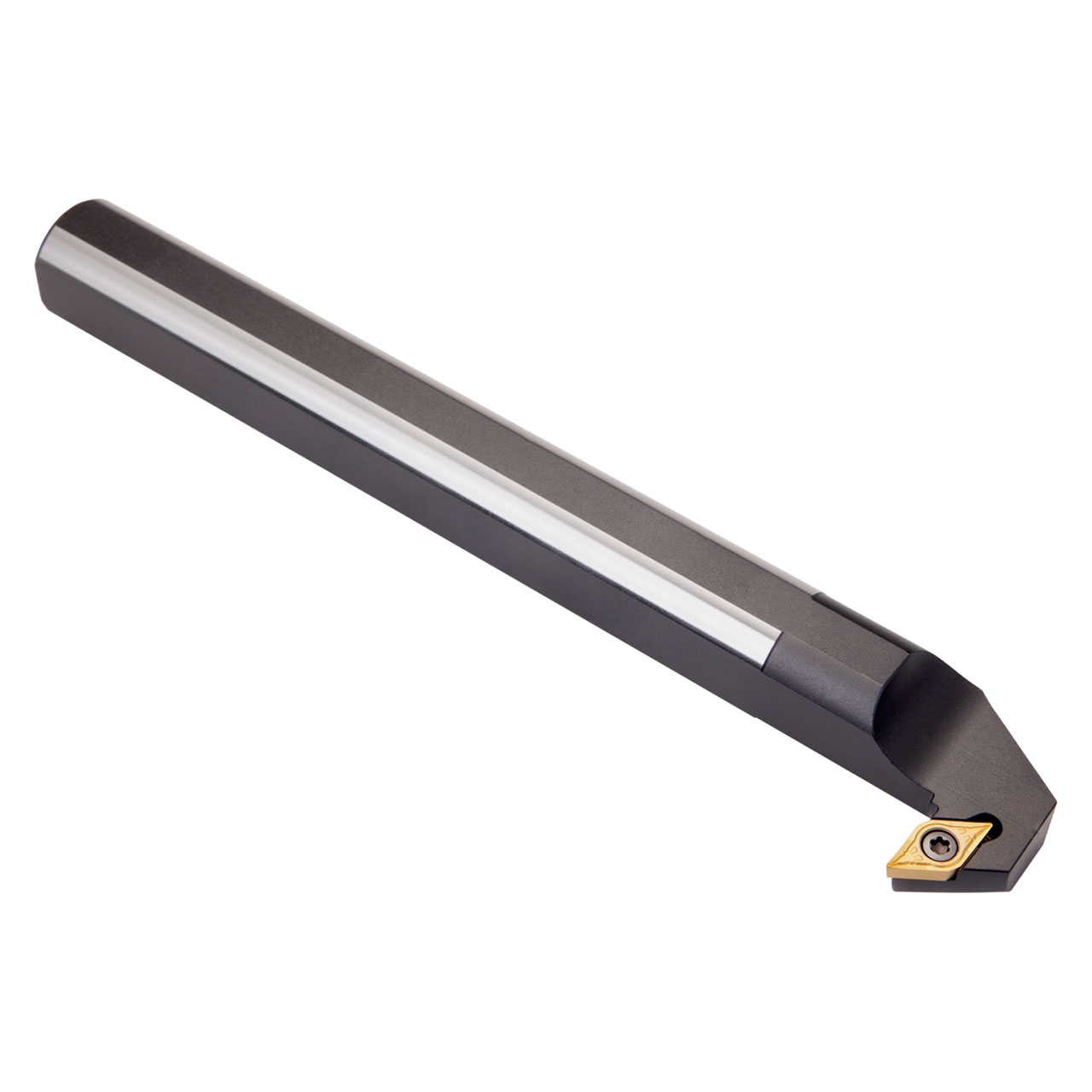

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 6.35 mm, 2.38 mm thick (ISO designation DC.. 0702.. ), left hand back cutting with off-set shank, steel without coolant hole, 16 mm diameter x 150 mm long for back chamfering.
Product Specifications
| EDP Number | 6757004 |
| Functional Width (mm) | |
| Inclination Angle | -4 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Shank Height (mm) | 14.5 mm |
| Shank Width (mm) | 15 mm |
| Minimum Bore Diameter (mm) | |
| Overall Length (mm) | 163 mm |
| Overall Length (Inch) | 6.417" |
| Functional Length (mm) | 150 mm |
| Direction of Tool | Left |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
19/32"
Shank Width (Decimal Inch):
0.5900"
Shank Width (mm):
15mm
Shank Height (Inch):
37/64"
Shank Height (Decimal Inch):
0.5700"
Shank Height (mm):
14.5mm
