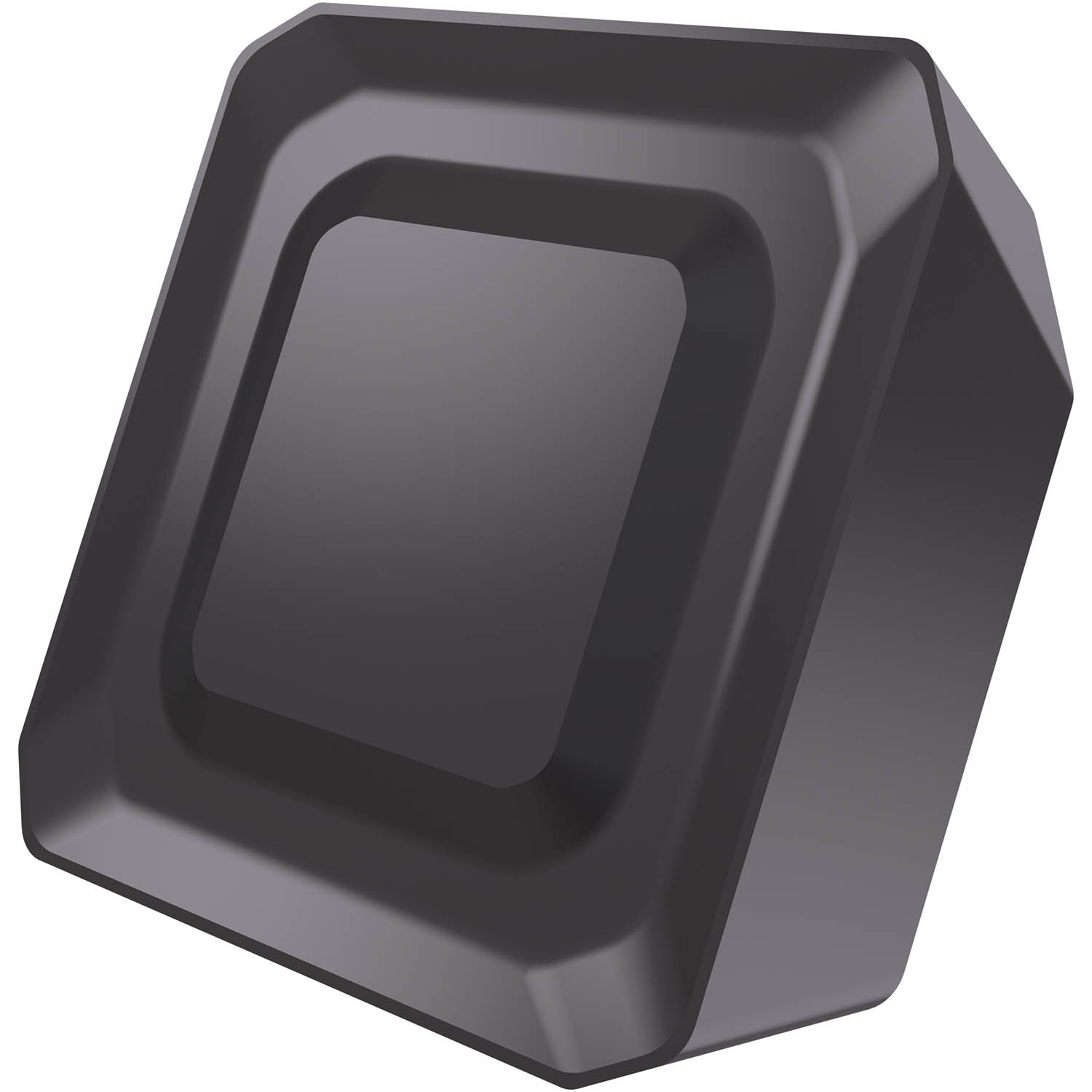

Single-sided milling insert SBMR 2207 with chip-breakers, square for a maximum depth of cut of 15.0 mm, with an indexing accuracy according to ISO-tolerance class-M with rounded cutting edges and facet, M8326 PVD coated WC-Co carbide within ISO-grade range P20-P40 for machining of steel with face mills FSB22X.
Product Specifications
| EDP Number | 6801308 |
| Maximum Depth of Cut (mm) | 15 mm |
| Max Depth of Cut (Inch) | 0.591" |
| Coating Property | 1 |
| Inscribed Circle Diameter (mm) | 22 mm |
| Inscribed Circle Diameter (Inch) | 0.866" |
| M-Dimension (mm) | 2.82 mm |
| M-Dimension (Inch) | 0.111" |
| Insert Length (mm) | 22 mm |
| Insert Length (Inch) | 0.866" |
| Insert Thickness (mm) | 8 mm |
| Insert Thickness (Inch) | 0.315" |
| Wiper Edge Length (mm) | 1.99 mm |
| Wiper Edge Length (Inch) | 0.078" |
| Coating Process | PVD |
| Coating | M8326 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 1.5 mm |
| Min Depth of Cut (Inch) | 0.059" |
