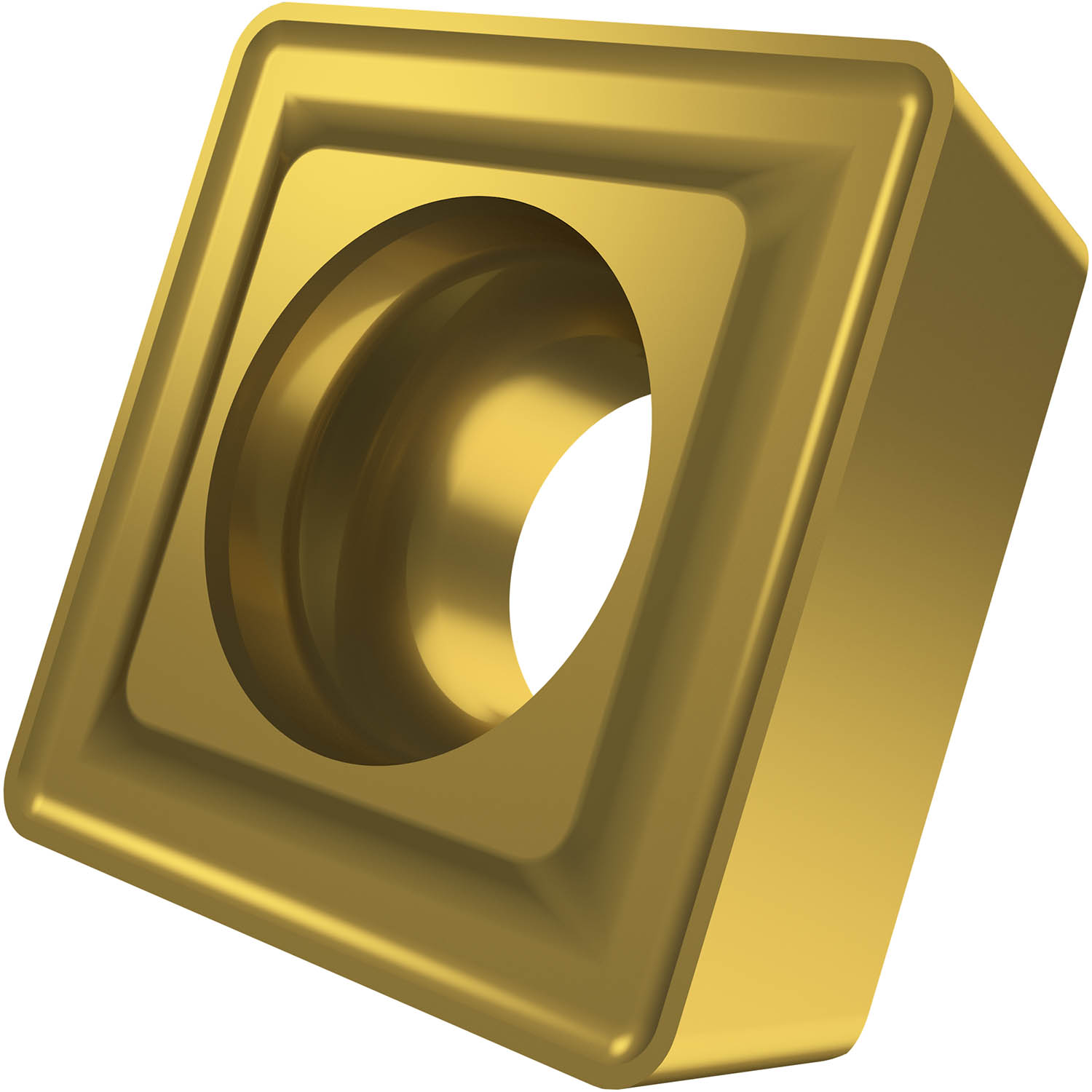

Pramet SCET 050204-UD:D8330 | 0.219" Circle Diameter x 0.016" Radius Indexable Drill Insert

$13.53
Ships:
From Partner Facility
Ships:
From Partner Facility
interval quantity:
10
SKU:
23146161
UPC:
3603602900005
Weight:
0.07 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Drilling insert to fit the peripheral pocket of PRAMET 80.D indexable drills within a diameter range from 15 up to 19mm, D8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P35 and K15-K35 with UD geometry for machining of steel and cast-iron.

Product Specifications
EDP Number6754634
Coating Property1
Fixing Hole Diameter (mm)2.4 mm
Fixing Hole Diameter (Inch)0.094"
Cutting Edge Length (mm)5.556 mm
Cutting Edge Length (Inch)0.219"
Inscribed Circle Diameter (mm)5.556 mm
Inscribed Circle Diameter (Inch)0.219"
Insert Thickness (mm)2.38 mm
Insert Thickness (Inch)0.094"
Corner Radius (mm)0.4 mm
Corner Radius (Inch)0.016"
Coating ProcessPVD
CoatingD8330
Surface ColorGold
