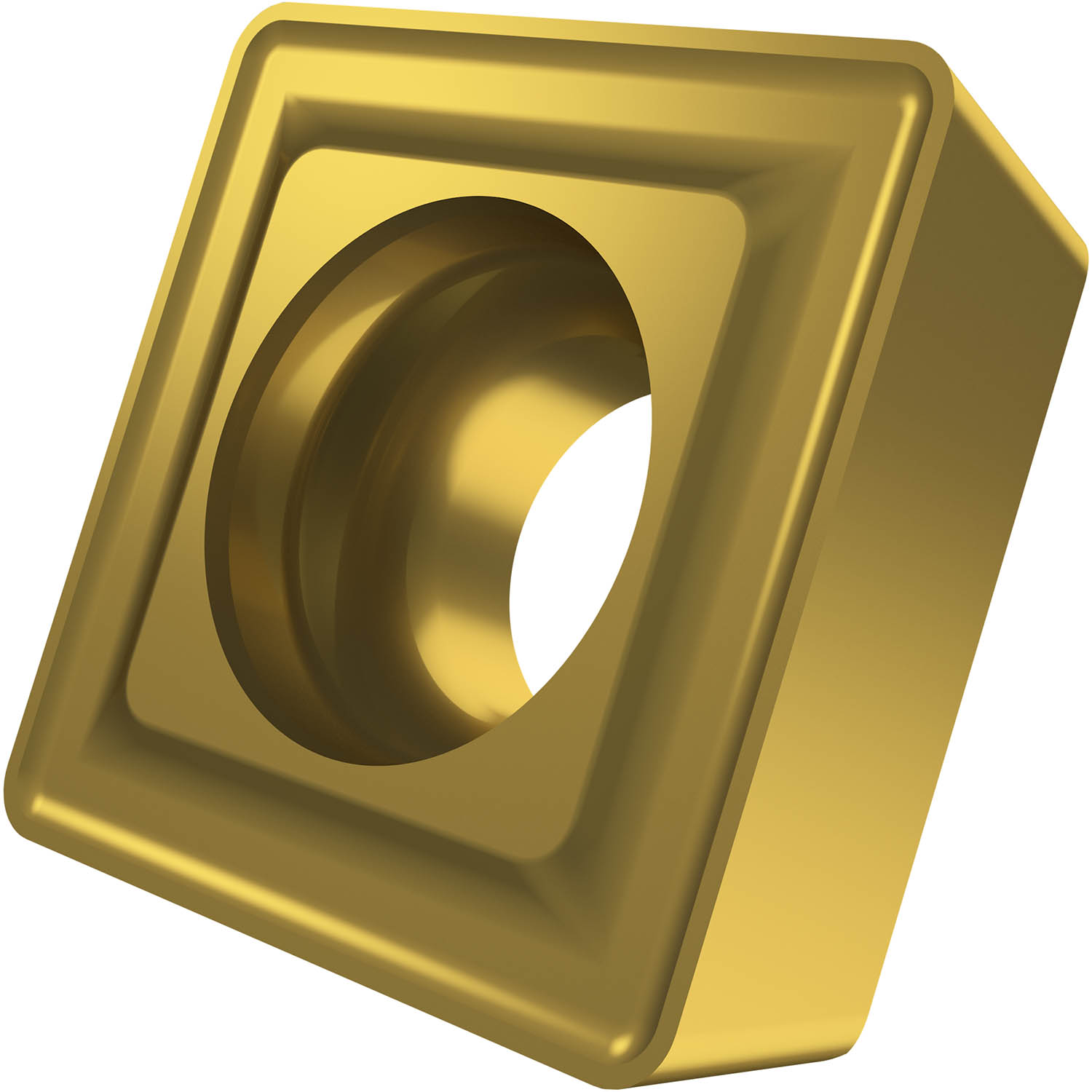

Drilling insert to fit the peripheral pocket of PRAMET 80.D indexable drills within a diameter range from 22.5 up to 27mm, D8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P35 and K15-K35 with UD geometry for machining of steel and cast-iron.
Product Specifications
| EDP Number | 6754636 |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3.5 mm |
| Fixing Hole Diameter (Inch) | 0.138" |
| Cutting Edge Length (mm) | 7.937 mm |
| Cutting Edge Length (Inch) | 0.312" |
| Inscribed Circle Diameter (mm) | 7.937 mm |
| Inscribed Circle Diameter (Inch) | 0.312" |
| Insert Thickness (mm) | 3.18 mm |
| Insert Thickness (Inch) | 0.125" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | PVD |
| Coating | D8330 |
| Surface Color | Gold |
