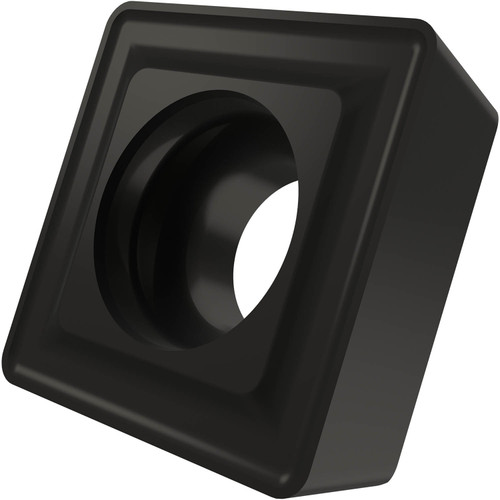

Drilling insert to fit the peripheral pocket of PRAMET 80.D indexable drills within a diameter range from 45 up to 58mm, D9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P35 and K15-K35 with UD geometry for machining of steel and cast-iron.
Product Specifications
| EDP Number | 6754585 |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.6 mm |
| Fixing Hole Diameter (Inch) | 0.22" |
| Cutting Edge Length (mm) | 15.875 mm |
| Cutting Edge Length (Inch) | 0.625" |
| Inscribed Circle Diameter (mm) | 15.875 mm |
| Inscribed Circle Diameter (Inch) | 0.625" |
| Insert Thickness (mm) | 5.56 mm |
| Insert Thickness (Inch) | 0.219" |
| Corner Radius (mm) | 1.2 mm |
| Corner Radius (Inch) | 0.047" |
| Coating Process | MT-CVD |
| Coating | D9335 |
| Surface Color | Black |
