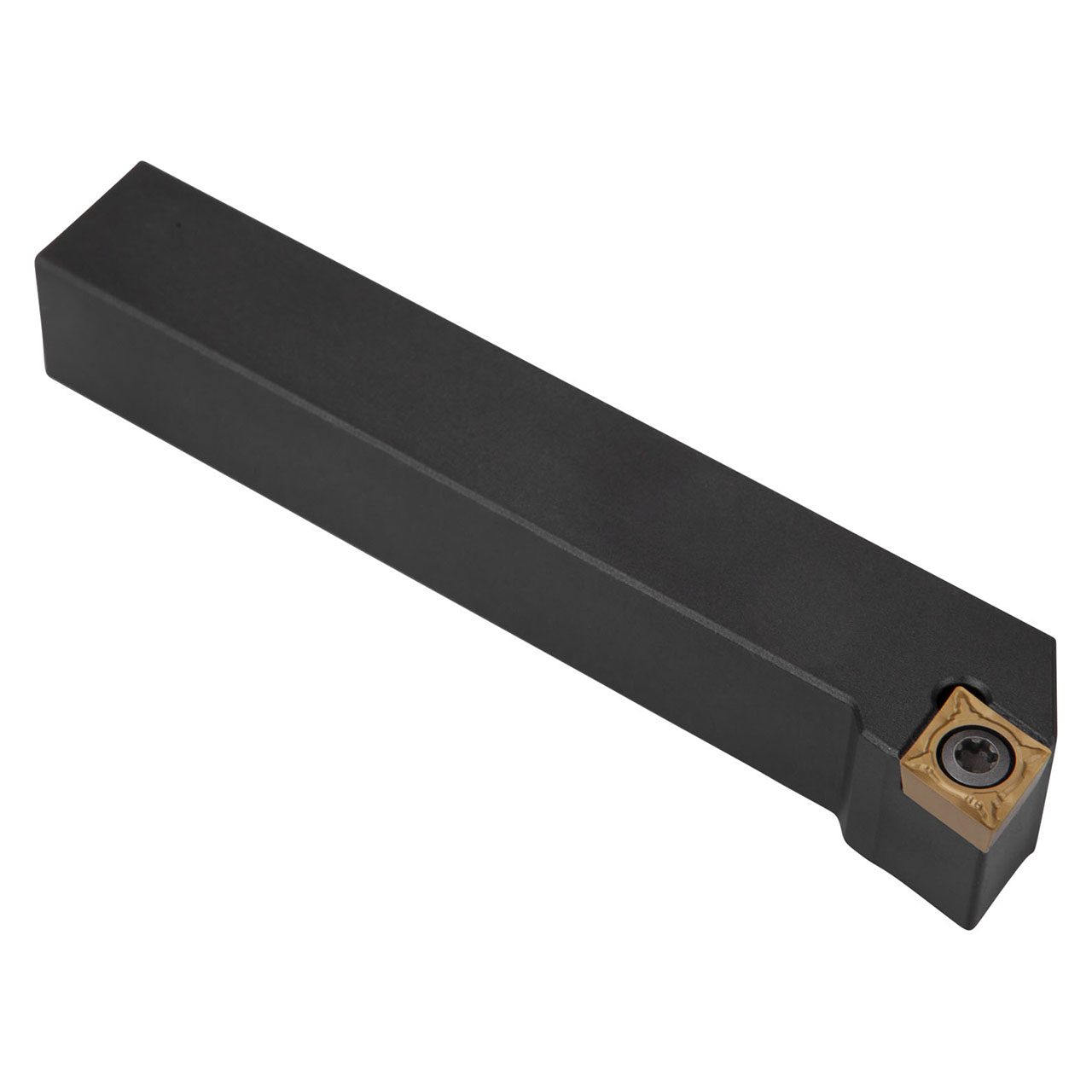

Screw clamp turning tool for holding a 80° rhombus positive insert with an inscribed circle diameter of 9.525 mm, 3.97 mm thick (ISO designation CC.. 09T3.. ), left hand 90° end cutting with off-set shank, 16 mm tool height x 16 mm width x 100 mm long for face turning with and without shoulder.
Product Specifications
| EDP Number | 6756807 |
| Functional Height (mm) | 16 mm |
| Functional Width (mm) | |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 16 mm |
| Shank Width (mm) | 16 mm |
| Functional Length (mm) | 100 mm |
| Head Length (mm) | 16 mm |
| Direction of Tool | Left |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
5/8"
Shank Width (Decimal Inch):
0.6300"
Shank Width (mm):
16mm
Shank Height (Inch):
5/8"
Shank Height (Decimal Inch):
0.6300"
Shank Height (mm):
16mm
