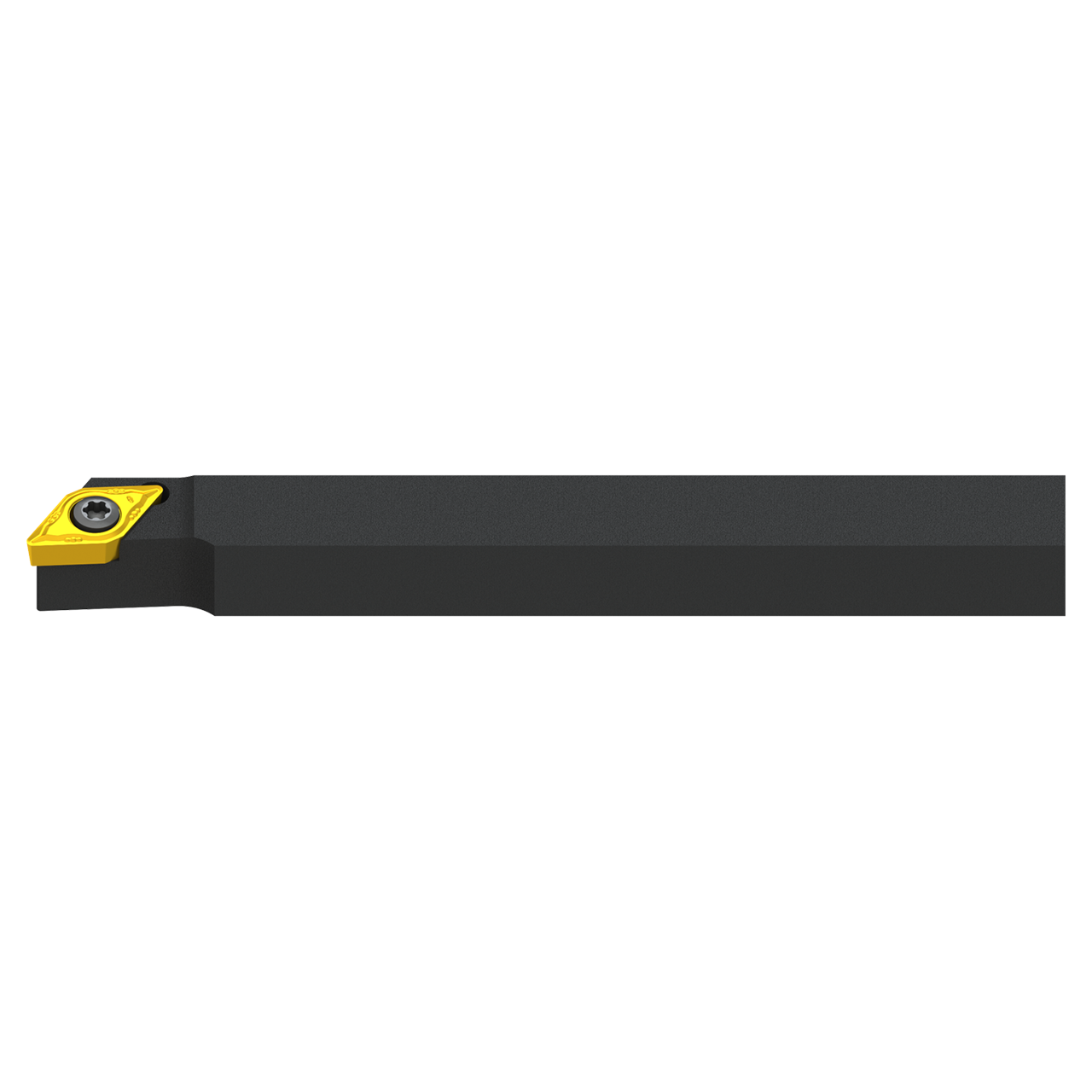

Screw clamp turning tool also compatible with sliding head machines for holding a 55 degree rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), right hand 93 degree side cutting with off-set shank, 12mm tool height x 12mm width x 125mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder.
Product Specifications
| Manufacturer Part Number | SDJCR 1212 K 11-S |
| Head Length (mm) | 22.60mm |
| Functional Length (mm) | 125.00mm |
| Shank Height (mm) | 12.00mm |
| Shank Width (mm) | 12.00mm |
| Functional Height (mm) | 12 |
| Functional Width (mm) | 12 |
| Product Type | Turning Toolholder |
| Country of Origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
Shank Width (Inch):
15/32"
Shank Width (Decimal Inch):
0.4724"
Shank Width (mm):
12.00mm
Shank Height (Inch):
15/32"
Shank Height (Decimal Inch):
0.4724"
Shank Height (mm):
12.00mm
interval quantity:
1
