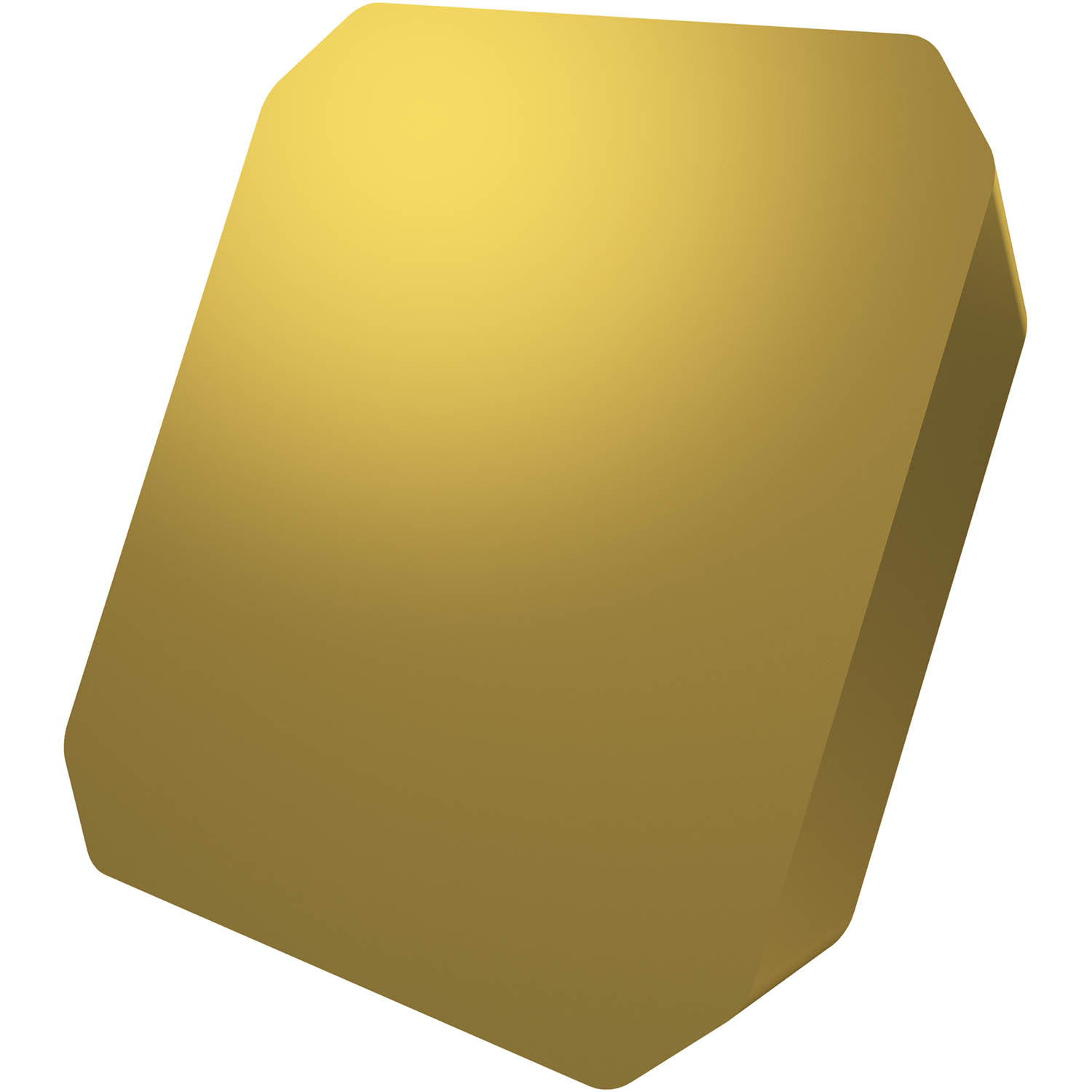

Single-sided milling insert SEEN 1203 with a plane rake surface, square for a maximum depth of cut of 6.5 mm, with an indexing accuracy according to ISO-tolerance class-E with sharp cutting edges, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel.
Product Specifications
| EDP Number | 6800853 |
| Maximum Depth of Cut (mm) | 6.5 mm |
| Max Depth of Cut (Inch) | 0.256" |
| Coating Property | 1 |
| Cutting Edge Length (mm) | 12.7 mm |
| Cutting Edge Length (Inch) | 0.5" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| M-Dimension (mm) | 1.6 mm |
| M-Dimension (Inch) | 0.063" |
| Insert Thickness (mm) | 3.18 mm |
| Insert Thickness (Inch) | 0.125" |
| Coating Process | PVD |
| Coating | M8340 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
