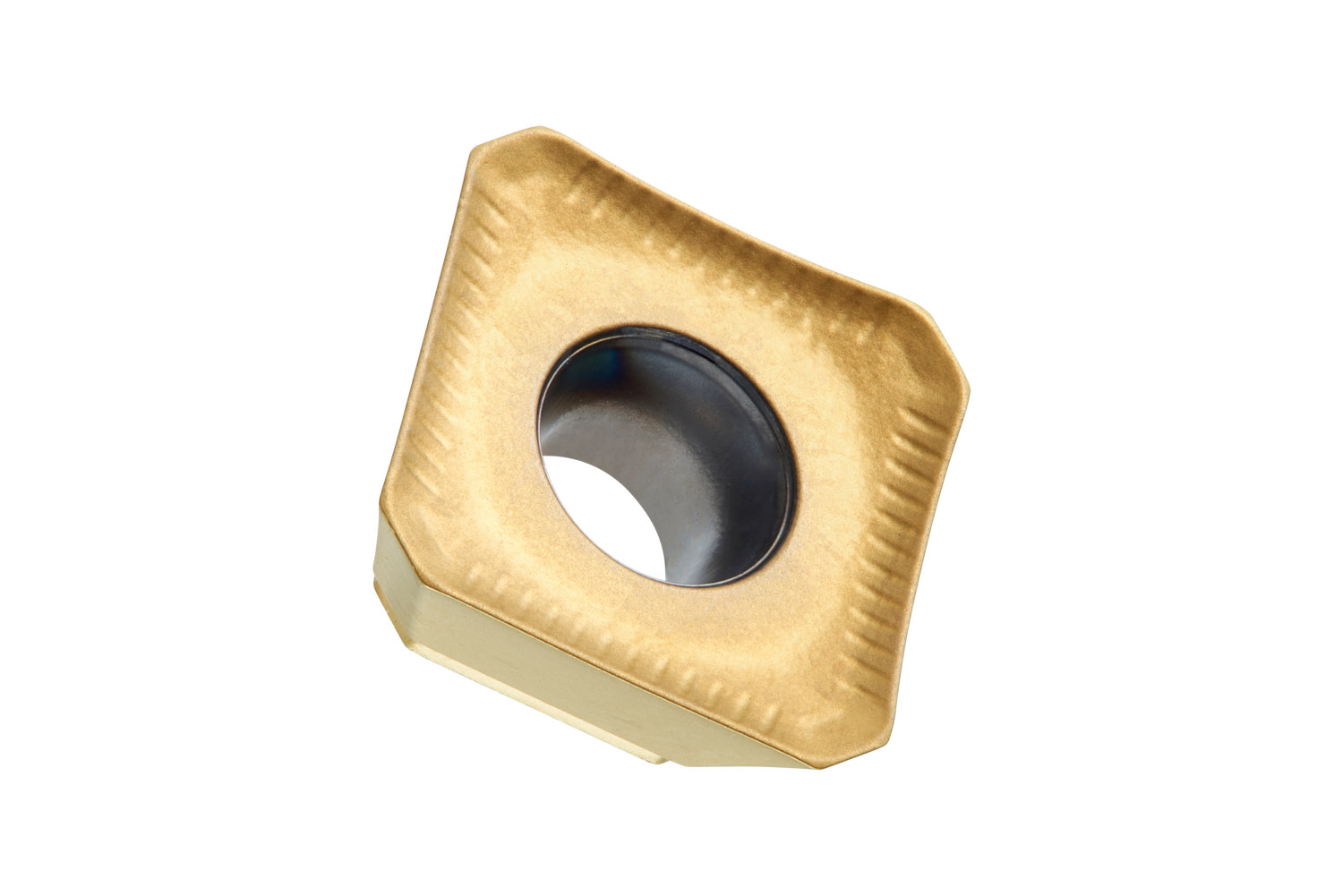

Single-sided milling insert SEMT 09T3 with chip-breakers, square for a maximum depth of cut of 4.5 mm, with an indexing accuracy according to ISO-tolerance class-M with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with face mills SSE09.
Product Specifications
| EDP Number | 6800866 |
| Maximum Depth of Cut (mm) | 4.5 mm |
| Max Depth of Cut (Inch) | 0.177" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3.5 mm |
| Fixing Hole Diameter (Inch) | 0.138" |
| Cutting Edge Length (mm) | 9.525 mm |
| Cutting Edge Length (Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.525 mm |
| Inscribed Circle Diameter (Inch) | 0.375" |
| M-Dimension (mm) | 1.21 mm |
| M-Dimension (Inch) | 0.048" |
| Insert Thickness (mm) | 3.97 mm |
| Insert Thickness (Inch) | 0.156" |
| Coating Process | PVD |
| Coating | M8340 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
10
