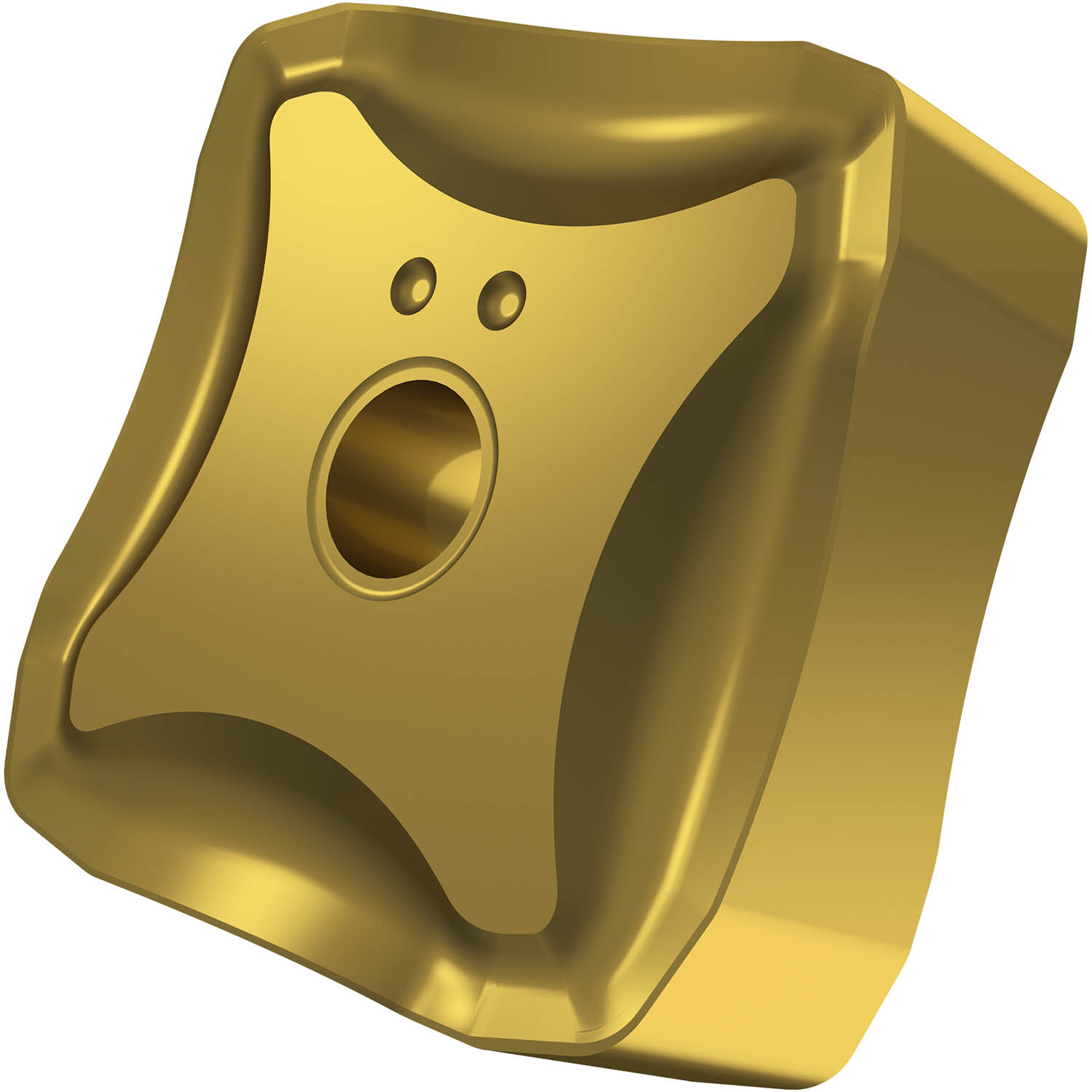

Double-sided milling insert SNHF 1204 with chip-breakers, square for a maximum depth of cut of 6.0 mm, with an indexing accuracy according to ISO-tolerance class-H and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron.
Product Specifications
| EDP Number | 7451013 |
| Maximum Depth of Cut (mm) | 6 mm |
| Max Depth of Cut (Inch) | 0.236" |
| Coating Property | 1 |
| Cutting Edge Length (mm) | 12.7 mm |
| Cutting Edge Length (Inch) | 0.5" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| M-Dimension (mm) | 0.5 mm |
| M-Dimension (Inch) | 0.02" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Wiper Edge Length (mm) | 2 mm |
| Wiper Edge Length (Inch) | 0.079" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
