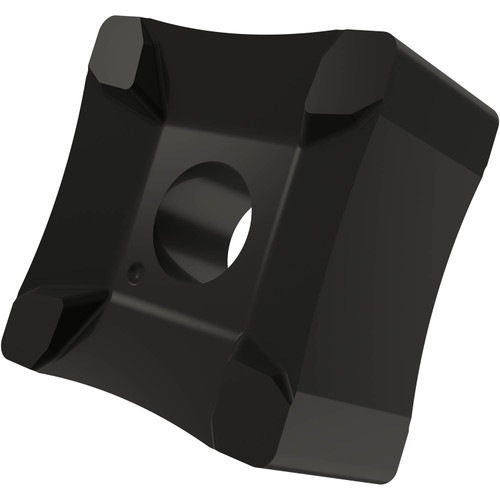

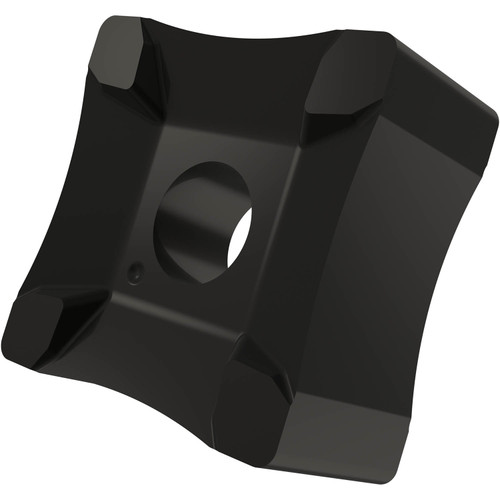

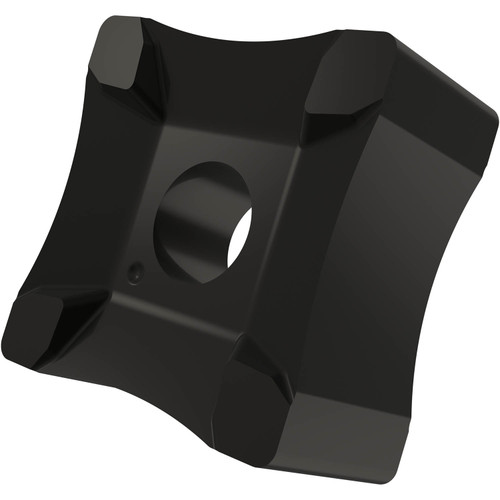

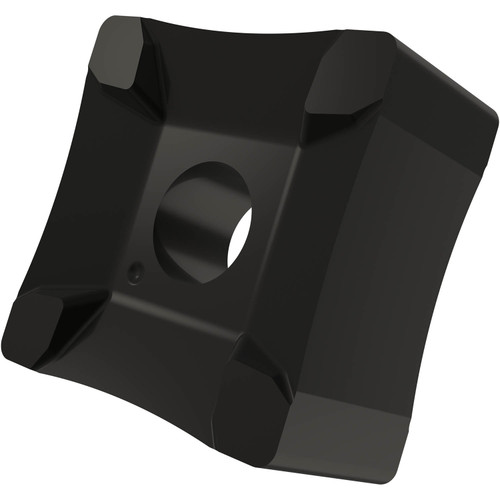

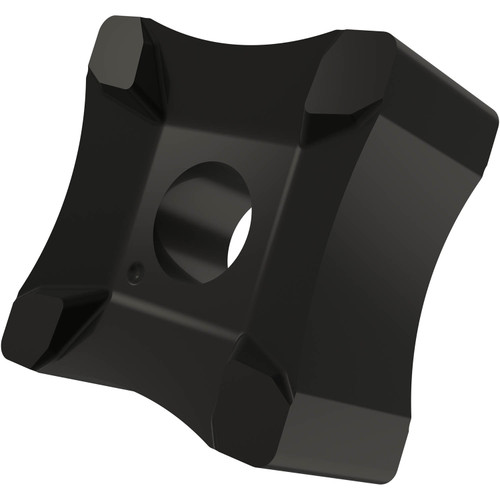

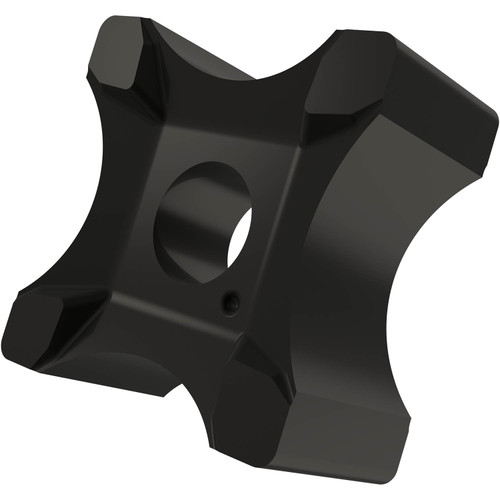

Double-sided scarfing insert, square with a main cutting edge length of 15.875 mm, 8.15 mm thick and a working radius of 25 mm for tube diameters from 29 to 36 mm, T9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P45/M15-M40 and S15-S25 for deburring the outside of steel, stainless-steel and super-alloy tubes and pipes.
Product Specifications
| EDP Number | 6801223 |
| Profile Radius (mm) | 25 mm |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 5.16 mm |
| Fixing Hole Diameter (Inch) | 5.16" |
| Cutting Edge Length (mm) | 15.875 mm |
| Cutting Edge Length (Inch) | 0.625" |
| Inscribed Circle Diameter (mm) | 15.875 mm |
| Inscribed Circle Diameter (Inch) | 0.625" |
| Insert Thickness (mm) | 8.15 mm |
| Insert Thickness (Inch) | 0.321" |
| Coating Process | MT-CVD |
| Coating | T9335 |
| Surface Color | Black |
| Chipbreaker Manufacturer's Designation | With chipbreaker -no designation |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
5/8"
Length (Decimal Inch):
0.6250"
Length (mm):
15.875mm
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.875mm
Thickness (Inch):
21/64"
Thickness (Decimal Inch):
0.3210"
Thickness (mm):
8.15mm
