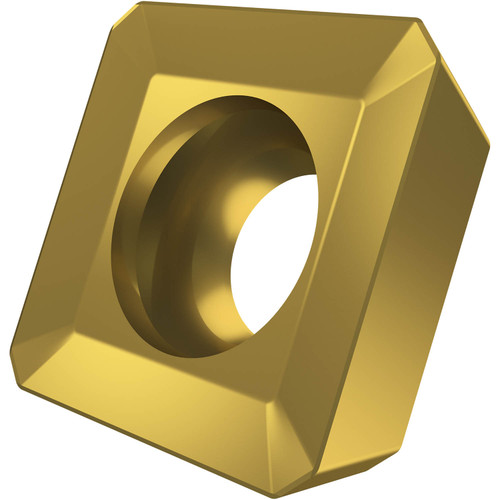

Single-sided milling insert SPET 1204 with chip-breakers, square for a maximum depth of cut of 12.0 mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with shoulder mills with extended flute J(T)-SSAP.
Product Specifications
| EDP Number | 7451036 |
| Maximum Depth of Cut (mm) | 12 mm |
| Max Depth of Cut (Inch) | 0.472" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.5 mm |
| Fixing Hole Diameter (Inch) | 0.217" |
| Cutting Edge Length (mm) | 12.7 mm |
| Cutting Edge Length (Inch) | 0.5" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| M-Dimension (mm) | 1.9 mm |
| M-Dimension (Inch) | 0.075" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
