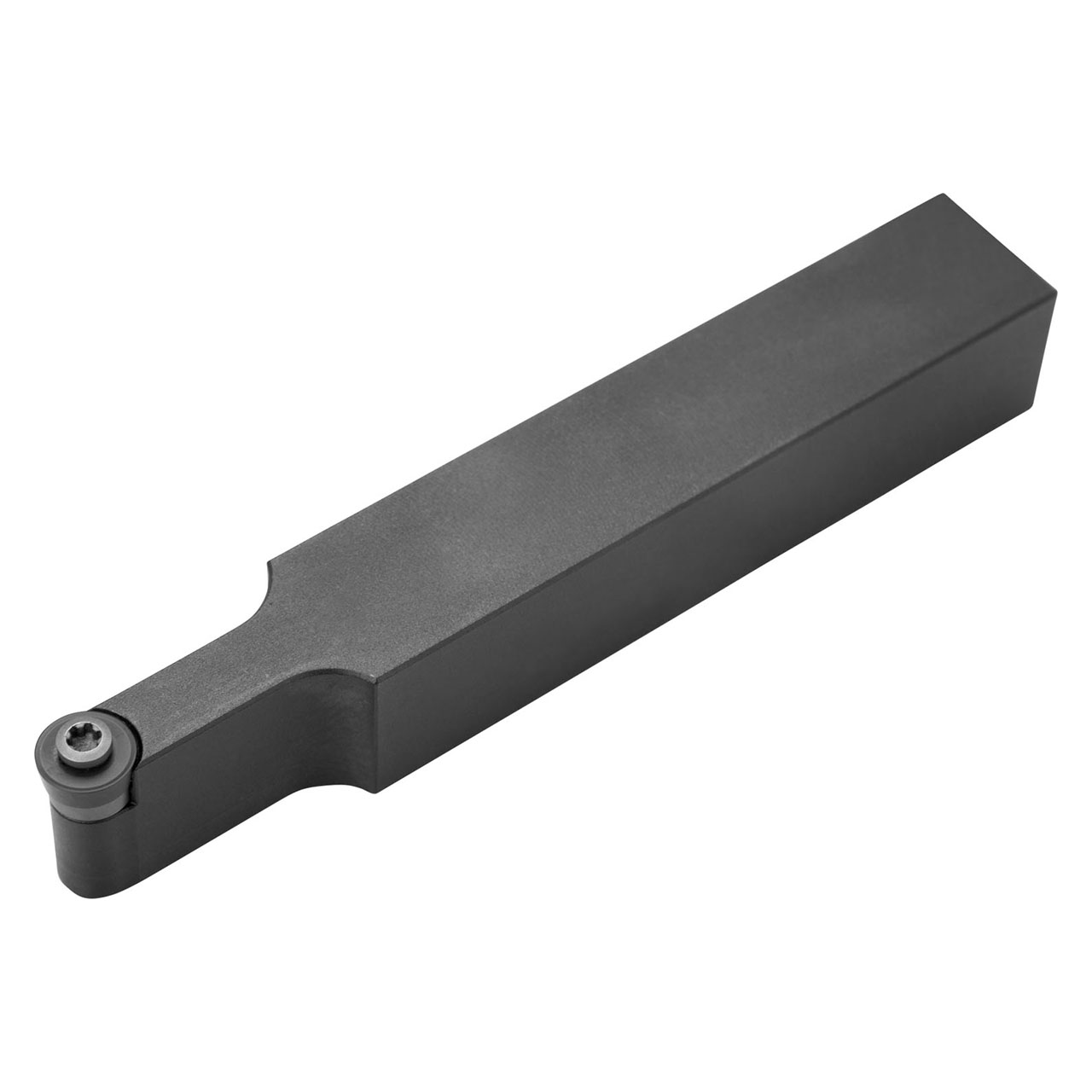

Screw clamp turning tool for holding a round positive insert with a diameter of 6 mm, 2.38 mm thick (ISO designation RC.. 0602MO ), neutral hand side and end cutting with straight shank, 16 mm tool height x 16 mm width x 100 mm long for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6756811 |
| Functional Height (mm) | 16 mm |
| Functional Height (Inch) | 0.63" |
| Functional Width (mm) | |
| Functional Width (Inch) | 0.433" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 16 mm |
| Shank Width (mm) | 16 mm |
| Shank Width (Inch) | |
| Functional Length (mm) | 100 mm |
| Functional Length (Inch) | 3.937" |
| Head Length (mm) | 12 mm |
| Head Length (Inch) | 0.472" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
5/8"
Shank Width (Decimal Inch):
0.6300"
Shank Width (mm):
16mm
Shank Height (Inch):
5/8"
Shank Height (Decimal Inch):
0.6300"
Shank Height (mm):
16mm
