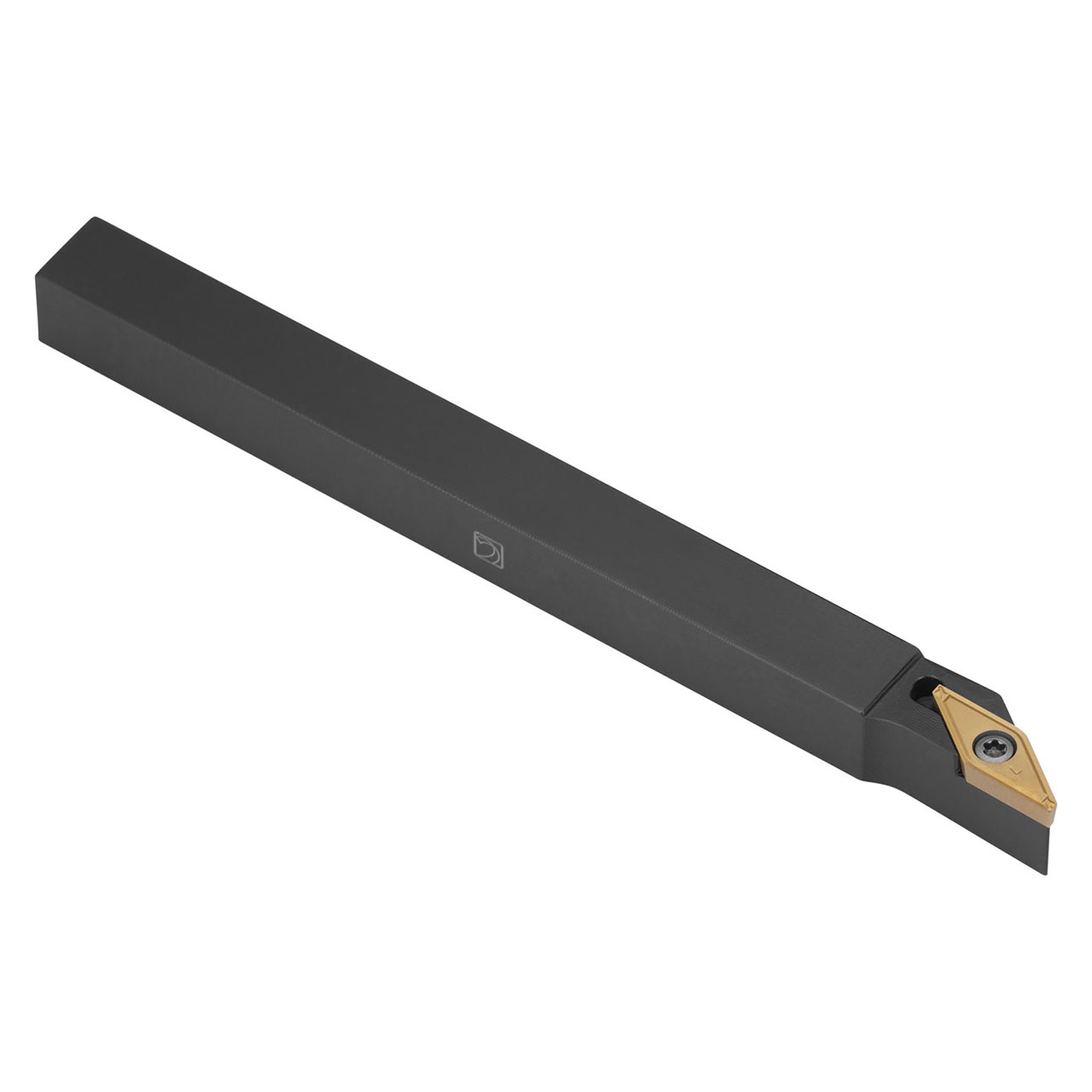

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94 mm, 3.18 mm thick (ISO designation VCGX 1303.. ), left hand 93° side cutting with off-set shank, 16 mm tool height x 16 mm width x 150 mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 6760602 |
| Functional Height (mm) | 16 mm |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 16 mm |
| Shank Width (mm) | 16 mm |
| Functional Length (mm) | 150 mm |
| Head Length (mm) | 25 mm |
| Direction of Tool | Left |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
5/8"
Shank Width (Decimal Inch):
0.6300"
Shank Width (mm):
16mm
Shank Height (Inch):
5/8"
Shank Height (Decimal Inch):
0.6300"
Shank Height (mm):
16mm
