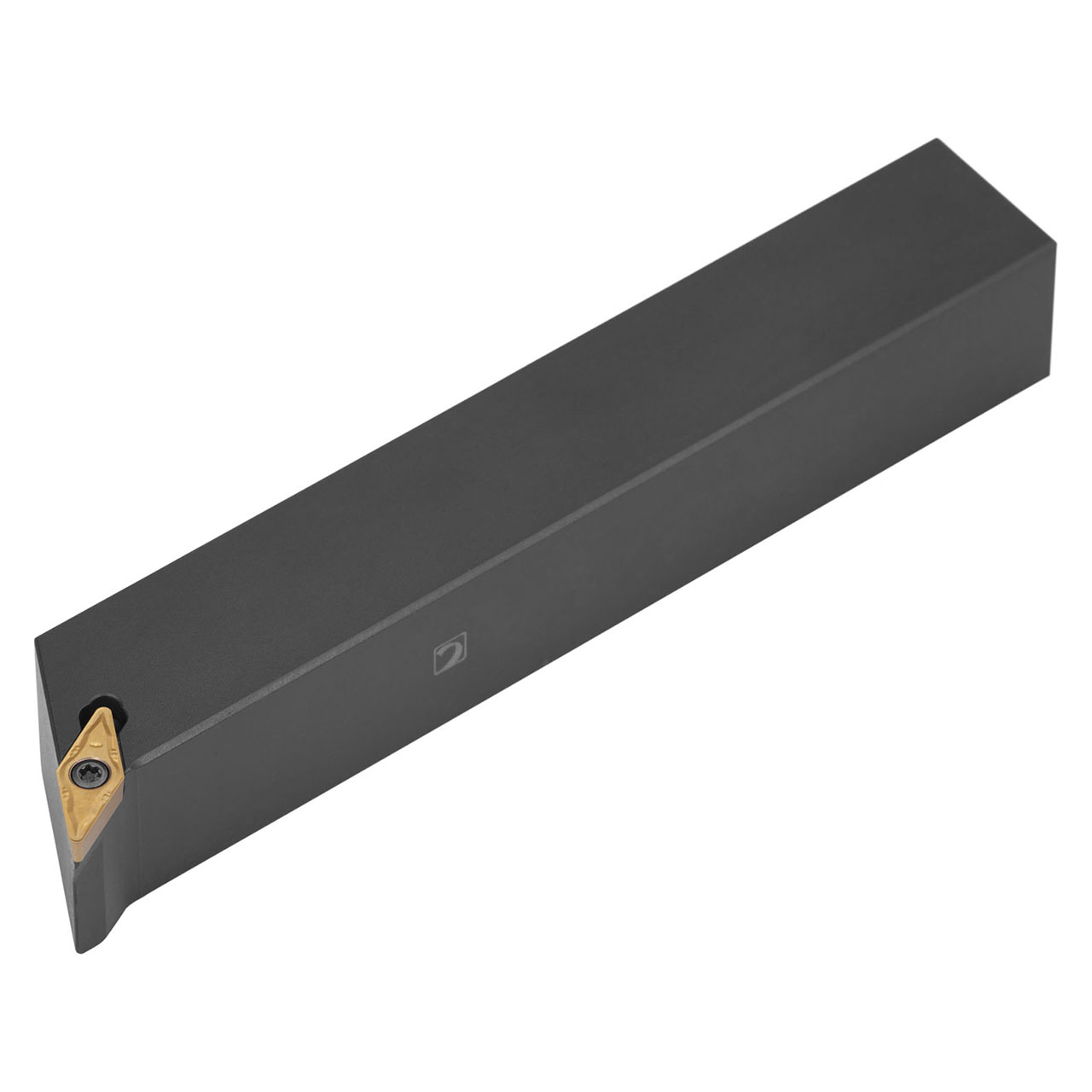

Screw clamp turning tool for holding a 35 Degree rhombus positive insert with an inscribed circle diameter of 6.35 mm, 3.18 mm thick (ISO designation VB.. 1103.. ), right hand 62.5 Degree, left and right side cutting, 20 mm tool height x 20 mm width x 125 mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder.
Product Specifications
EDP Number | 6760336 |
Functional Height (mm) | 20 mm |
Functional Width (mm) | |
Maximum Axial Groove Outside Diameter (mm) | |
Shank Height (mm) | 20 mm |
Shank Width (mm) | 20 mm |
Functional Length (mm) | 125 mm |
Head Length (mm) | 12 mm |
Direction of Tool | Right |
Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
25/32"
Shank Height (Inch):
25/32"
interval quantity:
1
