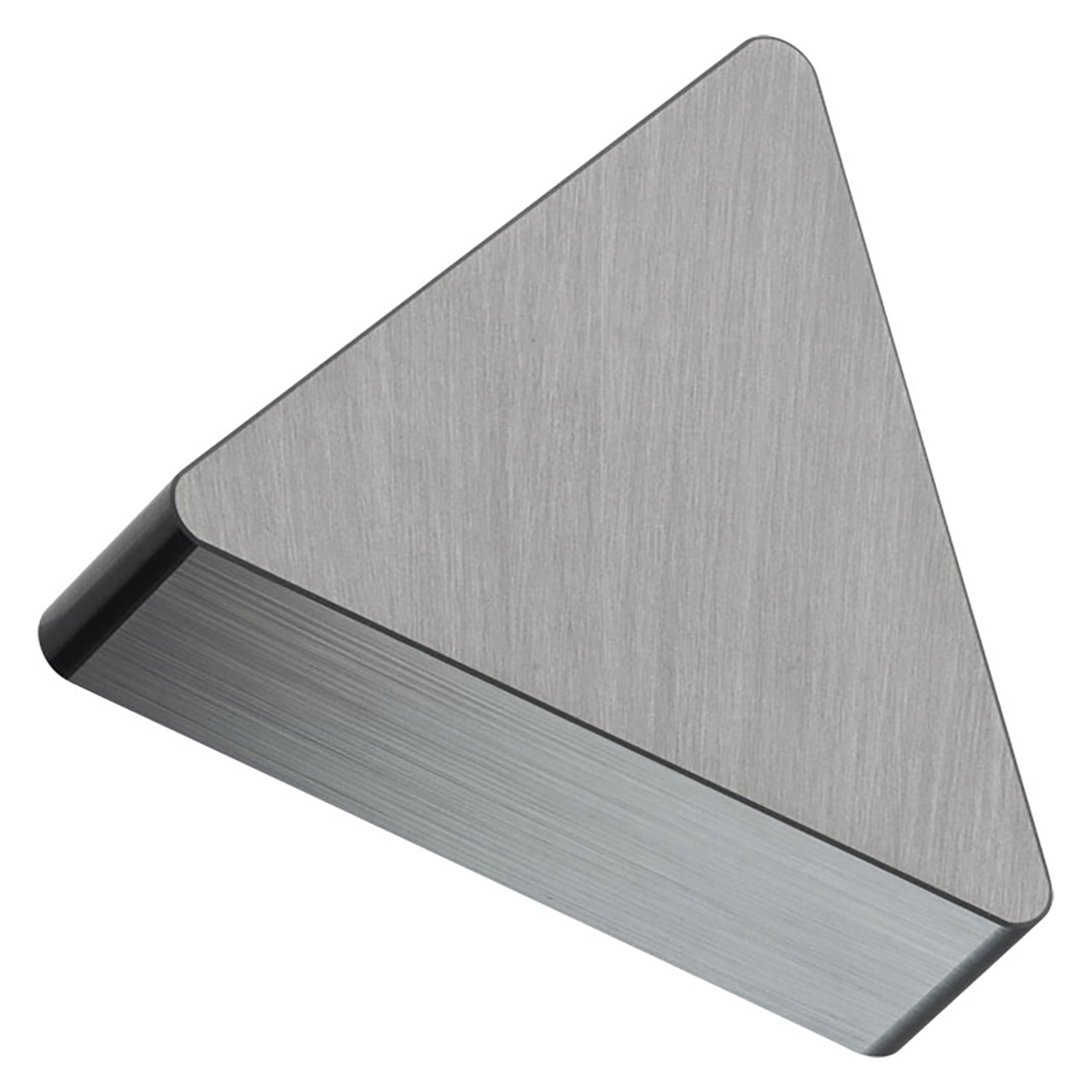

Double-sided turning insert, triangular, plain, with inscribed circle diameter of 9.525 mm, 4.76 mm thick, 1.2 mm nose radius, indexing accuracy according to ISO-tolerance class-G, cutting edges with facet T-land -20°/0.1 mm, in grade TC100, an uncoated ceramic within ISO range K01-K15, for high-speed machining of cast-irons.
Product Specifications
| EDP Number | 6755411 |
| Max Depth of Cut (mm) | 3.8 mm |
| Max Depth of cut (Inch) | 0.15" |
| Cutting Edge Length (mm) | 16.5 mm |
| Cutting Edge Length (Inch) | 0.65" |
| Inscribed Circle Diameter (mm) | 9.525 mm |
| Inscribed Circle Diameter (Inch) | 0.375" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Corner Radius (mm) | 1.2 mm |
| Corner Radius (Inch) | 0.047" |
| Coating | TC100 |
| Surface Color | Grey - Black |
| Min Depth of Cut (mm) | 1.2 mm |
| Min Depth of Cut (Inch) | 0.047" |
| Chipbreaker Manufacturer's Designation | No chipbreaker |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
21/32"
Length (Decimal Inch):
0.6500"
Length (mm):
16.5mm
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.2mm
interval quantity:
10
