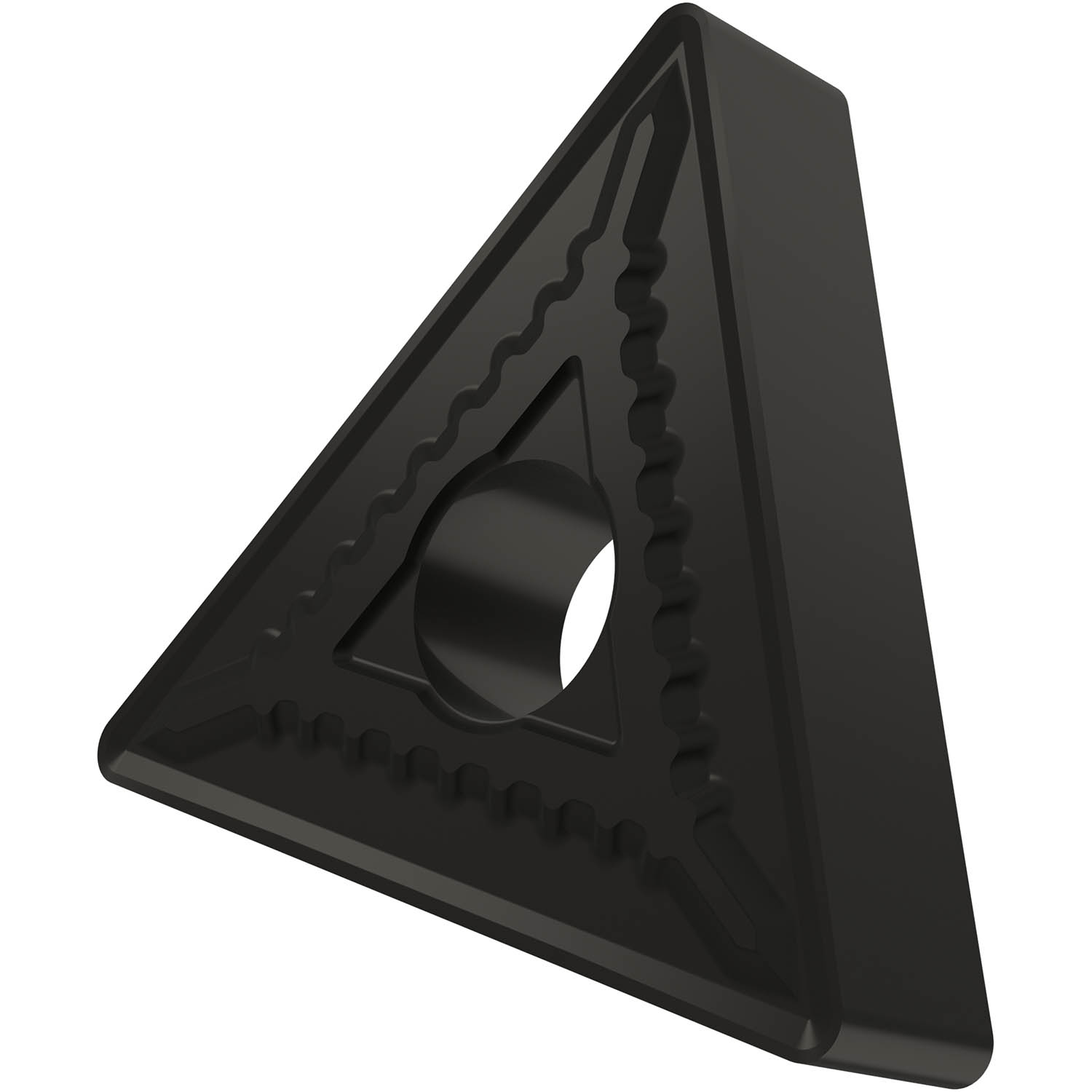

Pramet TNMG 433-SM:T7335 | 0.5" Circle Diameter x 4.76 mm Thickness T7335 Grade Turning Insert

$10.61
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
55/64"
Length (Decimal Inch):
0.8660"
Length (mm):
22mm
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.7mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.2mm
interval quantity:
10
SKU:
23149545
UPC:
3603603069848
Weight:
0.41 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Double-sided negative turning insert, triangular with inscribed circle diameter of 12.7 mm, 4.76 mm thick, 1.2 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SM with rounded cutting edges, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M20-M40 and S15-S25, for fine to heavy machining of stainless-steels and super-alloys.

Product Specifications
EDP Number6915874
Max Depth of Cut (mm)5 mm
Max Depth of cut (Inch)0.197"
Coating Property1
Maximum Axial Groove Outside Diameter (mm)
Fixing Hole Diameter (mm)5.16 mm
Fixing Hole Diameter (Inch)0.203"
Cutting Edge Length (mm)22 mm
Cutting Edge Length (Inch)0.866"
Inscribed Circle Diameter (mm)12.7 mm
Inscribed Circle Diameter (Inch)0.5"
Insert Thickness (mm)4.76 mm
Insert Thickness (Inch)0.187"
Corner Radius (mm)1.2 mm
Corner Radius (Inch)0.047"
Coating ProcessMT-CVD
CoatingT7335
Surface ColorBlack
Min Depth of Cut (mm)1.2 mm
Min Depth of Cut (Inch)0.047"
Chipbreaker Manufacturer's DesignationSM
